Remove/install engine hood hinge - AR88.40-P-3060M
MODELS 220, 215
| Remove/Install | |||
| 1.1 | Remove engine hood | ||
| 1.2 | Move engine hood to upright position | AR88.40-P-1000M | |
| 2 | Position protective fender covers | ||

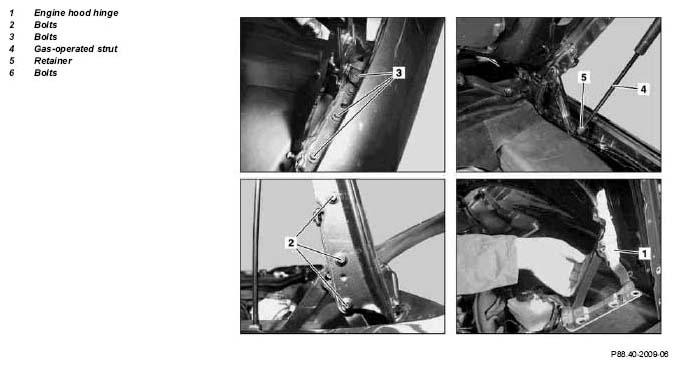

| 3 | Mark installation position of engine hood (7) on engine hood hinges | ||
| 4 | Remove gas pressure strut (4) by lifting retainers (5) | ||
| Dispose of old gas-operated strut | OS00.00-P-1001-01A | ||
| 5 | Mark installation position of engine hood hinge (1) on wheelhouse paneling | ||
| 6 | Unscrew bolt (2) | *BA88.40-P-1001-01D | |
| 7 | Unscrew bolts (3) and remove engine hood hinge (1) | *BA88.40-P-1002-01D | |
| Model 220 | AR60.00-P-0700-01M | ||
| Model 215 If fit is not precise: ↓ |
AR60.00-P-0700-01N | ||
| Adjust engine hood | AR88.40-P-3020M | ||
| 8 | Install in the reverse order |
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS
| Number | Designation | Model 215 | Model 220.0/1 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01A | Size of gap | Engine hood to fender | Dimension "A" | mm | 4.5 (±1) | 4.5 (±1) |
| Engine hood to headlamp | Dimension "R" | mm | - | - | ||
| Engine hood and radiator grille | Dimension "O" | mm | - | - | ||
| Radiator grille to headlamp | Dimension "N" | mm | - | - | ||
| Fig. see | AR60.00-P-0700-01N | AR60.00-P-0700-01M | ||||
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS
| Number | Designation | Model 220.875/878 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01A | Size of gap | Engine hood to fender | Dimension "A" | mm | 4.5 (± 1) |
| Engine hood to headlamp | Dimension "R" | mm | - | ||
| Engine hood and radiator grille | Dimension "O" | mm | - | ||
| Radiator grille to headlamp | Dimension "N" | mm | - | ||
| Fig. see | AR60.00-P-0700-01MP | ||||
| Number | Designation | Model 215 | Model 220 | |
|---|---|---|---|---|
| BA88.40-P-1001-01D | Bolt for engine hood hinge on engine hood | Nm | 8 | 8 |
| BA88.40-P-1002-01D | Screw for engine hood hinge on body | Nm | 8 | 8 |
