Preparing rear end for welding in place - AR64.20-P-1020-02P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |

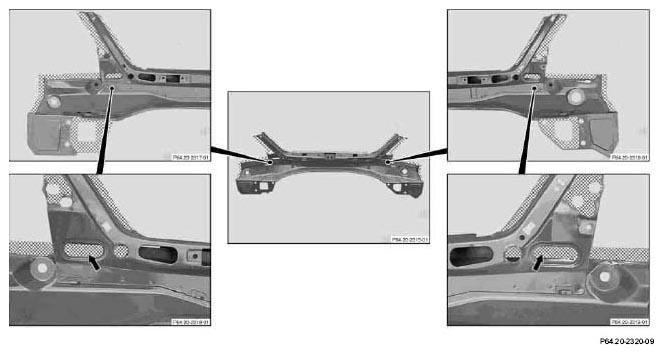

- Grind spot weld flanges to bare metal on inside of rear end plate.
Remove paint using a scraper at points marked with arrows.
- Coat insides of connection surfaces with zinc dust paint.
