Cutting out spare wheel recess - AR88.30-P-1000-01PB

Always interrupt air supply when inserting or removing blade.

Wear protective gloves and eye protection.

Fig 1: Identifying Cutting Blade (124 589 21 63 00)

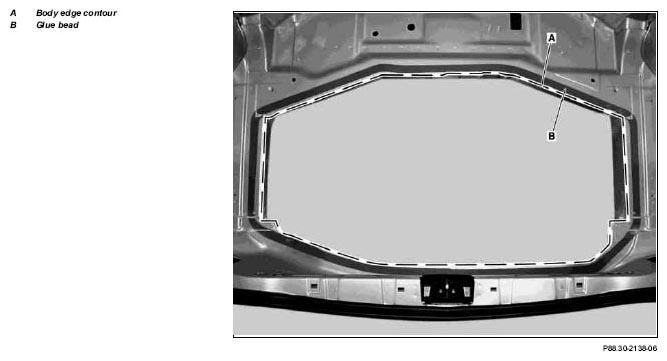

Fig 2: Identifying Body Edge Contour And Glue Bead

1. Mark body edge (A) contour on spare wheel recess
2. Clamp blade into multicutter.
3. Vertically saw spare wheel recess along separation line (A).

   Avoid damaging point.

4. Remove spare wheel recess upward
5. Clamp blade into multicutter.
6. Moisten whetstone and sharpen both sides of blade with machine switched on.
7. Cut through glue bead (2) all the way around with multicutter.
8. Remove remaining edge.
