Cutting out spare wheel recess - AR88.30-P-1000-01P

Always interrupt air supply when inserting or removing blade.

Wear protective gloves and eye protection.

Fig 1: Identifying Cutting Blade (124 589 21 63 00)

Illustrated on Model 203.0

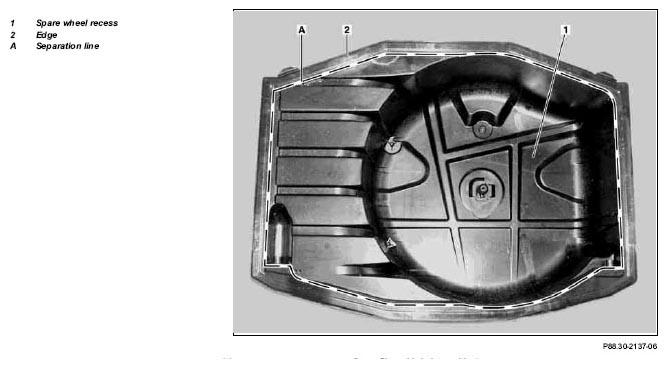

Fig 2: Identifying Spare Wheel Recess, Edge And Separation Line

1. Mark separation line (A) on spare wheel recess (1).
2. Clamp blade into multicutter.
3. Vertically saw spare wheel recess (1) along separation line (A).

   Avoid damaging paint.

4. Remove spare wheel recess (1) upward
5. Clamp blade into multicutter.
6. Moisten whetstone and sharpen both sides of blade with machine switched on
7. Cut through glue bead all the way around with multicutter.
8. Remove edge (2).
