Emergency alarm system cancel button location/purpose/design/operation - GF82.25-P-4101PP

MODEL 203 with CODE (930) Taxi emergency call with CODE (934) Taxi emergency alarm unit

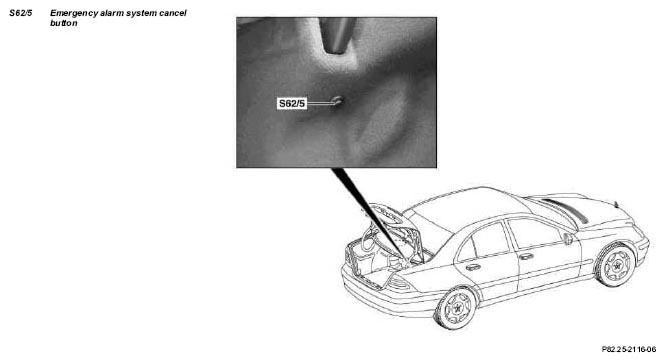

Fig 1: Identifying Emergency Alarm System Cancel Button Location

	Emergency alarm cancellation switch, location	The emergency alarm system cancel button (S62/5) is located in the luggage compartment below the hinge on the right side of the trunk lid.
	Emergency alarm system cancel button - purpose	To terminate active operation of the emergency alarm system. This procedure cannot be used to terminate the taxi SOS call function.
	Emergency alarm cancellation switch - Structure	The emergency alarm cancellation button (S62/5) consists of a button with a single-terminal contact switch designed to close the circuit to ground. A resistor is mounted in the circuit in parallel with the switch.
	Emergency alarm cancellation switch, function		GF82.25-P-4101-04PP
