Voice control system (VCS), arrangement of components - GF82.70-P-0002-01B

Illustrated on model 140

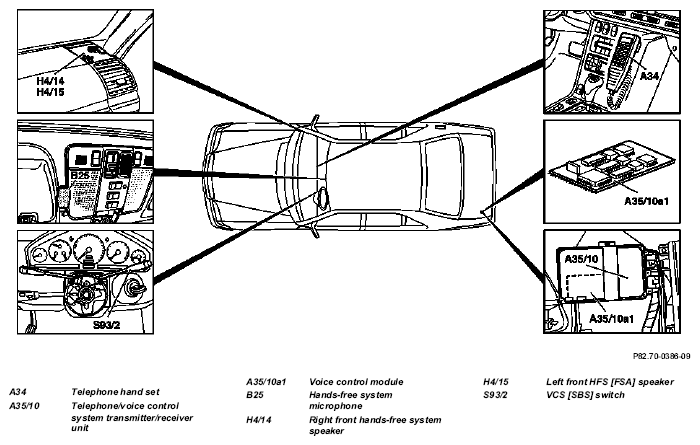

Fig 1: Identifying Voice Control System, Arrangement Of Components - Illustrated On Model 140

Shown on model 210.2 up to 31.5.98

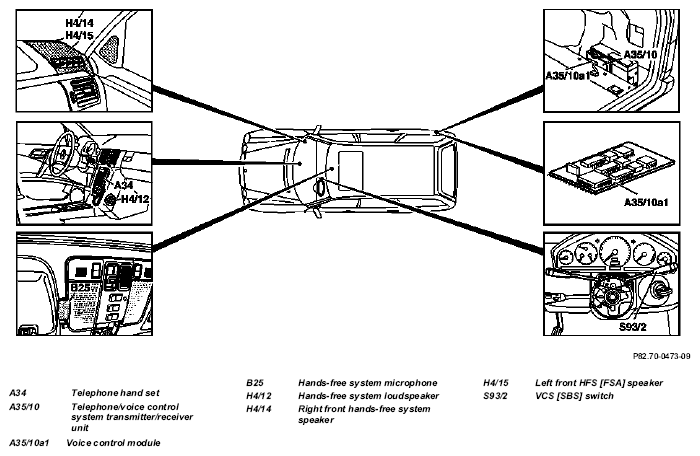

Fig 2: Identifying Voice Control System, Arrangement Of Components - Shown On Model 210.2 Up To 31.5.98

Shown on model 210.0 up to 31.5.98

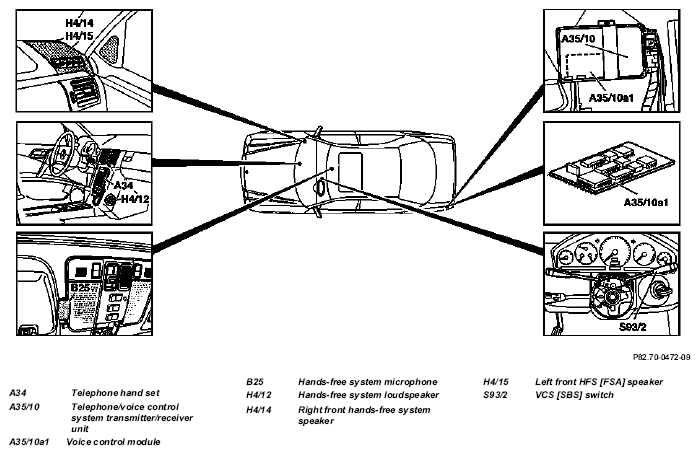

Fig 3: Identifying Voice Control System, Arrangement Of Components - Shown On Model 210.0 Up To 31.5.98
