Universal Portable CTEL Interface (UPCI), location of components - GF82.70-P-0004-01PM

Shown on model 203.0 up to 31.5.06

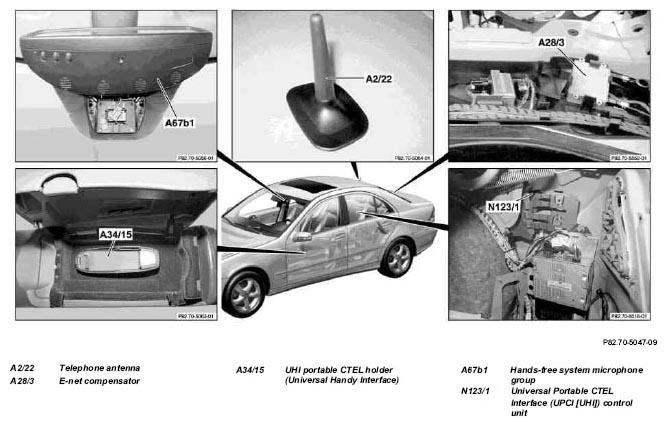

Fig 1: Identifying Universal Portable CTEL Interface (UPCI) Components Location - Shown On Model 203.0 Up To 31.5.06
G04735656
