Dynamic route guidance, function - GF82.61-P-4003R
MODELS 203.0 /2 /7 up to 23.4.04 with CODE (352a) COMAND operating and display system with CODE (491) U.S. version

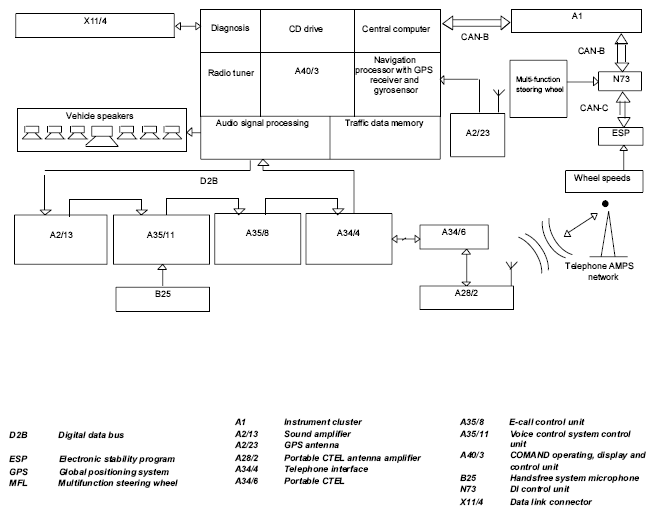

COMAND navigation block diagram with Starguide, illustrated on the following equipment specification:
- AMPS-network portable CTEL telephone (D2B)
- Voice control system (VCS) (code 813)
The Starguide system has been developed in Europe based on the dynamic navigation system. In order to comply with the more comprehensive USA requirements this system also contains an additional Information Service specially adapted to a specific user-requirement profile.
| Operating, display and control unit, location/task/design/function | GF82.85-P-3114R |
