Satellite radio, location/task - GF82.85-P-3113PMU

Model 203.0 /2 as of 24.4.04 up to 31.5.05, 203.7 as of 24.4.04 with CODE (494) USA version

Illustrated on Model 203.0

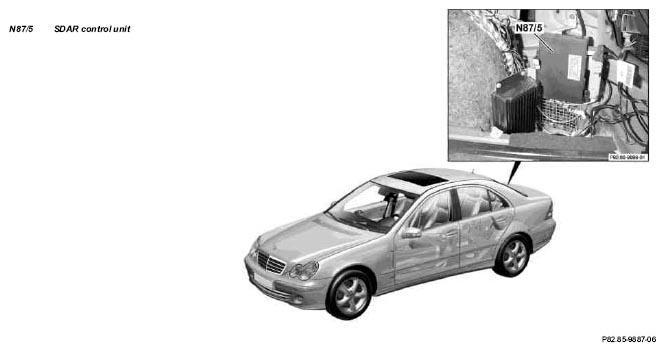

Fig 1: Identifying SDAR Control Unit - Illustrated On Model 203.0
G04735689
  Satellite radio, location The SDAR control unit (N87/5) is installed as a dealer option in the trunk on the right side on a bracket directly on the wheelhouse.
  Satellite radio, task   GF82.85-P-3113-01PMU
