Telephone interface, location/task/design/function - GF82.70-P-3107Q

MODELS 203.0 /2 /7, 209.3 /4 up to 31.5.04

Shown on model 209.3

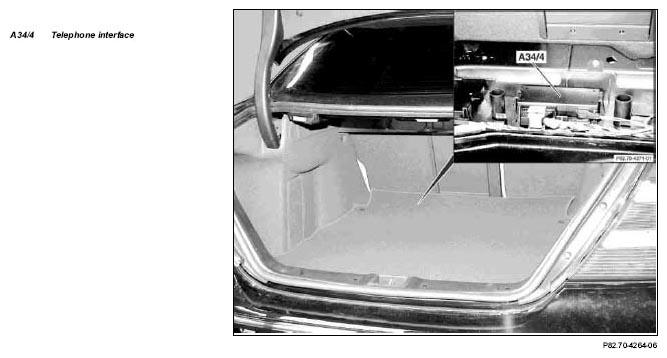

Fig 1: Identifying Telephone Interface - Shown On Model 209.3

	Telephone interface, location	The telephone interface (A34/4) is located on the trunk floor behind the rear seat bench.
	Telephone interface, purpose	The telephone interface (A34/4) allows the portable CTEL (A34/6) to be connected to the Digital Data Bus (D2B) as a ring subscriber. The portable CTEL (A34/6) is charged via the telephone interface (A34/4) and makes the antenna connection to the vehicle.
	Telephone interface, design	D2B interface Signal processing and conversion Input for D2B wake-up signal
	Telephone interface, function		GF82.70-P-3107-02Q
