CD player with changer, location/task/design/function - GF82.64-P-3113PMA

Model 203.0 /2 /7 as of 1.6.05 with CODE (819) 6-disk CD changer

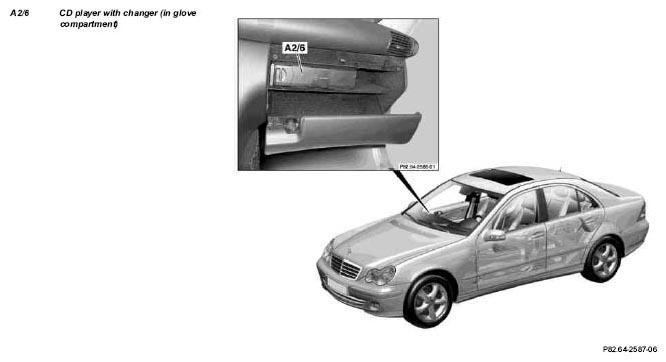

Fig 1: Identifying CD Player With Changer Location - Model 203.0 /2 /7 As Of 1.6.05 With Code (819)
G04735644
  CD player with changer, location The CD player with changer (in glove compartment) (A2/6) is located in the upper section of the glove compartment.
  CD player with changer, purpose
  • Playing audio CDs (MP3-compatible)
  • Changing CDs contained in the magazine

  CD player with changer, design
  • 6-disk CD changer magazine
  • Interface to Media Oriented System Transport (MOST)

  CD player with changer, function   GF82.64-P-3113-02PMA
