Removing, installing vacuum pump control module - AR43.05-P-1323B
MODEL 170 with ENGINE 111.958 /983 with TRANSMISSION 722.616
| Removing, installing | |||
| 1 | Detach left front road wheel | ||
| Detaching/attaching road wheels and, if necessary, converting road wheels | AP40.10-P-4050Z | ||
| 2 | Remove fender liner in left front fender | AR88.10-P-1300G | |

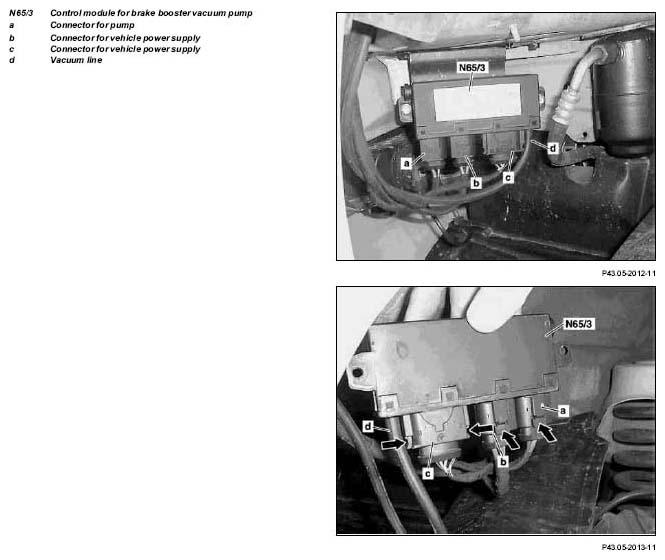

| 3 | Remove control module for brake booster vacuum pump (N65/3) from body | ||
| 4 | Release (arrows) and unplug connectors (a, b, c) | ||
| 5 | Detach vacuum line (d) | ||
| 6 | Install in the reverse order |
