Removing and installing vacuum pump - AR43.05-P-1320B

MODEL 170 with ENGINE 111.958 /983 with TRANSMISSION 722.616 electric brake booster vacuum pump

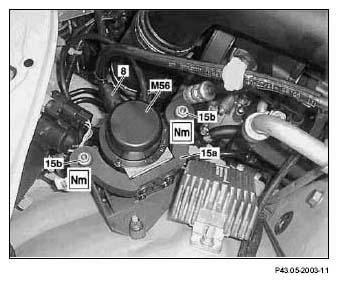

Fig 1: Identifying Vacuum Pump Remove/Install Components (1 Of 3)

Fig 2: Identifying Vacuum Pump Remove/Install Components (2 Of 3)

Fig 3: Identifying Vacuum Pump Remove/Install Components (3 Of 3)

	Removing, installing
1	Press together fastening notches on vacuum line (8) and remove
2	Unscrew nuts (15b) from bracket (15a)		*BA43.05-P-1003-01D
3	Remove brake booster vacuum pump (M56) with bracket (15a)
4	Separate plug connection (f)
5	Detach bracket (15a) from brake booster vacuum pump
6	Check rubber mount (15c) and bracket	Replace if necessary	*BA43.05-P-1002-01D
7	Install in reverse sequence

Electric brake booster vacuum pump
