Removal & Installation

  1. Remove driver's side air nozzle.
  2. Remove screw (1). See Fig 1 .
  3. Remove cover (2).
    4. NOTE: DO NOT remove accelerator cover (10).
  4. Remove light module (N7-1) screws (3,4 and 5).
  5. Remove screws (arrows) from cover (6).
  6. Remove cover (6) from cover (7).
    7. NOTE: DO NOT disconnect light module electrical connector.
  7. Remove light module from cover (6).
  8. Remove screws (9) from handle (8).
  9. Guide handle through cover (6).
  10. Remove data link connector (X11/4).
  11. Remove cover (6) with accelerator pedal cover down and back.
  12. Installation is the reverse of removal. Insert front lugs of accelerator pedal cover below floor covering.

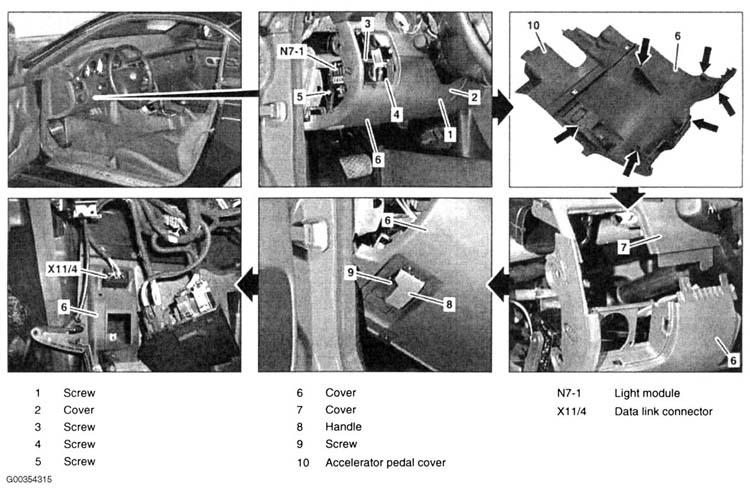

Fig 1: Removing & Installing Cover Below Instrument Panel
G00354315Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
