Removal & Installation

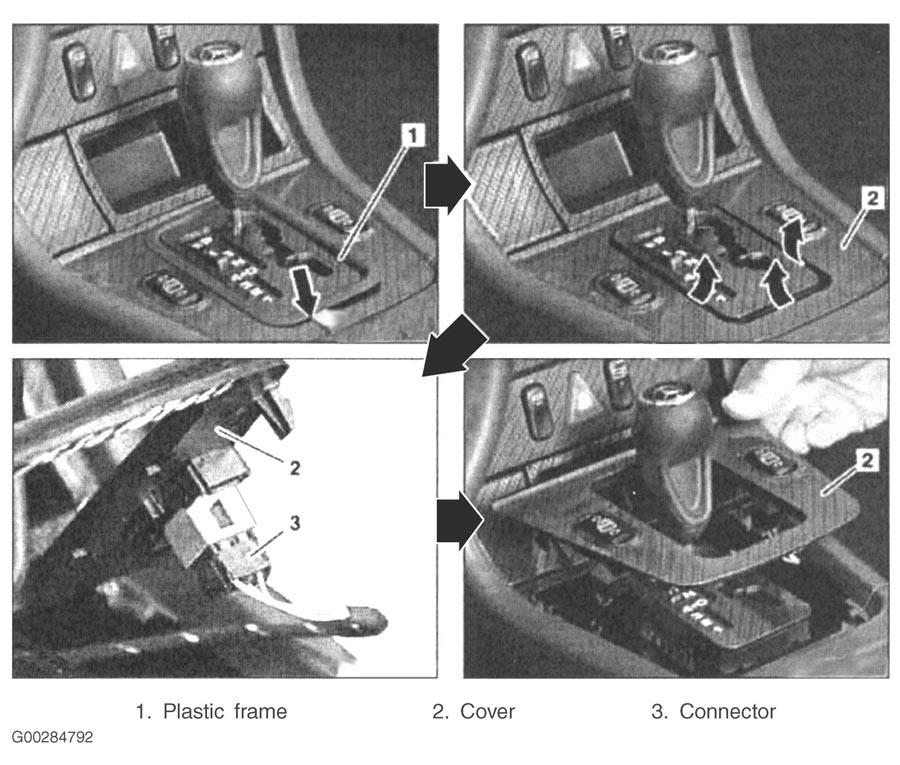

- Remove plastic frame (1) from around gearshift lever by prying frame upward with a long plastic wedge or similar tool. See Fig 1 .
- Remove cover (2) from center console by prying out of catches at rear and sides with a long plastic wedge or similar tool.
- Disconnect electrical connectors (3) from power window switches.
- Remove cover.
- Installation is the reverse of removal.
