Bleeding the clutch actuation - AR25.20-P-0070A

MODEL 129, 163, 140, 170, 202, 208, 210

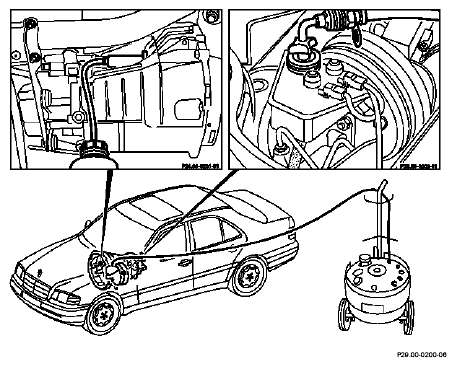

Fig 1: Bleeding Clutch Actuation

	Risk of poisoning  due to swallowing brake fluid. Risk of injury  due to brake fluid coming into contact with the skin and eyes.	Only pour brake fluid into suitable, appropriately marked containers. Wear protective clothing and safety glasses when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on brake fluid	All models	AH42.50-P-0001-01A
1	Unscrew cap and connect filling or bleeding unit	Comply with the manufacturer's operating instructions Bleeding pressure 2 bar	*WE58.40-Z-1001-07A
2	Open bleed valve on slave cylinder
3	Allow brake fluid to escape	Brake fluid must flow out clean and without any bubbles
4	Disconnect filling or bleeding unit	Comply with the manufacturer's operating instructions
5	Correct brake fluid left in reservoir
6	Screw on cap
7	Check function of clutch control and check system for leak

WORKSHOP EQUIPMENT

WE58.40-Z-1001-07A

Brake fluid replacement unit
