Attaching end cover - AR35.31-P-0550-28C
| Rear axle center assembly end cover with non-machined sealing surface | Models 170, 202, 208, 210 with rear axle center assembly dia. 185 mm as of 08.05.00 | BT35.31-P-0014-01A |
| Number | Designation | Model 124 | Model 129 | |||
|---|---|---|---|---|---|---|
| BA35.31-P-1001-02A | Bolt, end cover to rear axle center assembly | Bolt+washer | Nm | 50 | 50 | |
| Flange bolt (TORX, internal serrations) |
Stage 1 | Nm | 30 | 30 | ||
| 2nd stage | ∠° | 45 | 45 | |||
| Number | Designation | Model 170 | Model 201 | |||
|---|---|---|---|---|---|---|
| BA35.31-P-1001-02A | Bolt, end cover to rear axle center assembly | Bolt+washer | Nm | - | 50 | |
| Flange bolt (TORX, internal serrations) |
Stage 1 | Nm | 30 | 30 | ||
| 2nd stage | ∠° | 45 | 45 | |||
| Number | Designation | Model 202 | Model 208 | |||
|---|---|---|---|---|---|---|
| BA35.31-P-1001-02A | Bolt, end cover to rear axle center assembly | Bolt+washer | Nm | 50 | - | |
| Flange bolt (TORX, internal serrations) |
Stage 1 | Nm | 30 | 30 | ||
| 2nd stage | ∠° | 45 | 45 | |||
| Number | Designation | Model 210 | |||
|---|---|---|---|---|---|
| BA35.31-P-1001-02A | Bolt, end cover to rear axle center assembly | Bolt+washer | Nm | 50 | |
| Flange bolt (TORX, internal serrations) |
Stage 1 | Nm | 30 | ||
| 2nd stage | ∠° | 45 | |||
Repair materials
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-01A | Sealant | A 001 989 25 20 |
- Clean sealing surface at end cover (54) and at rear axle center assembly housing and coat with sealant.
- Fit end cover.
- Fit bolts with captive washers and tighten
.
Replace bolts with captive washers.
Illustrated on Model 129
- Fit flange bolts and tighten
Replace flange bolts.

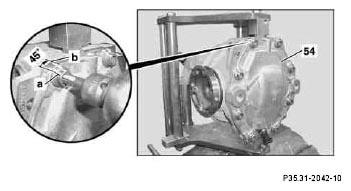

- Mark positions of bolt flanges in relation to rear axle center assembly housing (a).
- Put markings (b) on rear axle center assembly housing offset by 45°.
- Tighten flange bolts with 45° swing angle, stage 2. The marks (a) and (b) should then be in alignment.
Rear axle center assembly with bolts with captive washers
Rear axle center assembly with flange bolts
The flange bolts can also be tightened using a commercially available swing angle measuring device.
