Position lamp control, function - GF82.10-P-3001R

MODEL 230

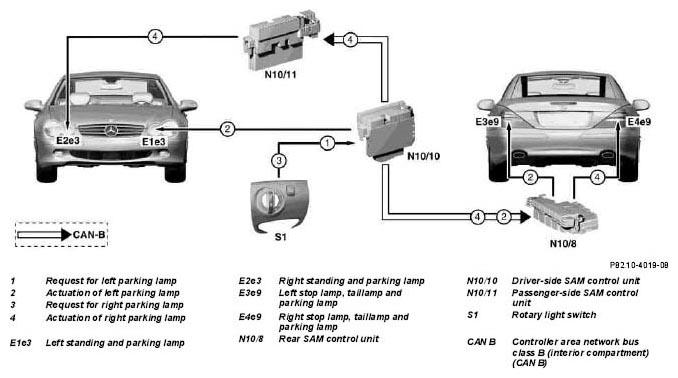

Fig 1: Position Lamp Control - Communication Diagram

Function requirements

Circuit 30 or
C. 15R OFF

Function sequence

The driver-side SAM control unit (N10/10) reads in the "Left parking lamp" or "Right parking lamp" position of the rotary light switch (S1) and relays the corresponding signal via CAN-B to the rear SAM control unit (N10/8) or passenger-side SAM control unit (N10/11).

Left parking lamp

The driver-side SAM control unit (N10/10) actuates the left standing lamp and parking lamp (E1e3) in the left front lamp unit and relays simultaneously via CAN-B the signal "Left parking lamp On" to the rear SAM control unit (N10/8).

The rear SAM control unit (N10/8) actuates the left stop lamp, taillamp and parking lamp (E3e9) in the left taillamp.

Right parking lamp

The driver-side SAM control unit (N10/10) relays the signal "Right parking lamp On" via CAN-B (CAN-B) to the passenger-side SAM control unit (N10/11) or rear SAM control unit (N10/8).

The right standing and parking lamp (E2e3) in the right front lamp unit is actuated by the passenger-side SAM control unit (N10/11) and the right stop lamp, taillamp and parking lamp (E4e9) in the right taillamp is actuated by the rear SAM control unit (N10/8).

	Driver-side SAM control unit with fuse and relay module, location/task/design		GF54.21-P-4109R
	Front passenger-side SAM control unit with fuse and relay module, location/task/design		GF54.21-P-4111R
	Rear SAM control unit with fuse and relay module, location/task/design		GF54.21-P-4112R
	Rotary light switch module, location/task/ design		GF82.10-P-4104R
