Sound amplifier, location - GF82.62-P-3100-01RB

Illustration

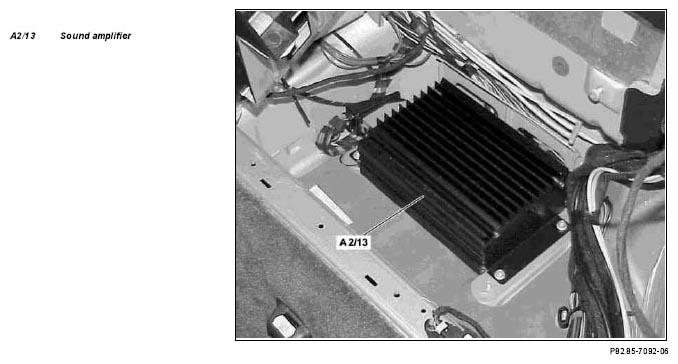

Fig 1: Identifying Sound Amplifier
G05075617

Location

The sound amplifier (A2/13)  is located in the rear area behind the driver's seat on the vehicle floor (below the rear box)
