Audio gateway control unit, location/task/design/function - GF82.62-P-3102RM: Notes

MODEL 230.4 as of 1.6.04

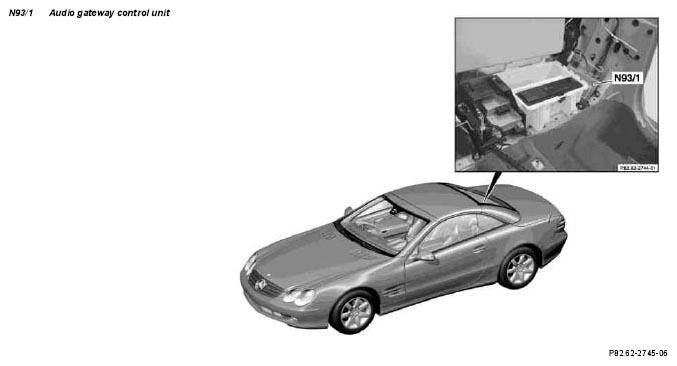

Fig 1: Identifying Audio Gateway Control Unit Location
G05075620
  Audio gateway control unit, location The audio gateway control unit (N93/1) is located below the cover of the luggage box to the left in the rear compartment.
  Audio gateway control unit, task
  • Central control of the vehicle speakers
  • AM/FM receiver
  • Decoder
  • Central diagnostic interface
  • Muting the audio sources

  Audio gateway control unit, design   GF82.62-P-3102-03RM
  Audio gateway control unit, function   GF82.62-P-3102-04RM
