Checking front axle carrier at front right - SM33.10-P-0001A

MODEL 220

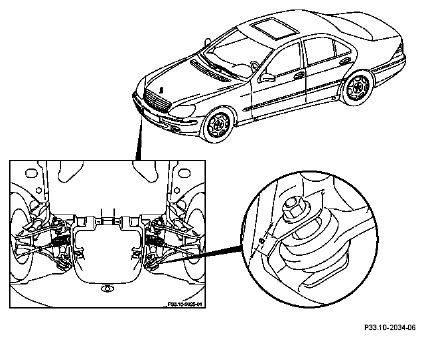

Fig 1: Identifying Front Axle Carrier At Front Right

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Sector	Op. no.	Operation text
P	023173	Checking front axle carrier at front right

	Checking
1	Lift vehicle on platform
2	Check front axle carrier in area (a) for cracks or pressure marks	Only in the area of the front right torque strut mounting
