Ensure cylinder head cover gasket is correctly installed. - AR01.20-P-5014-01H

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1003-27A Inspection mirror
  1. Check for correct seating of cylinder head cover gasket in the sealing groove over the whole circumference of the cylinder head cover (1).

    IMPORTANT Use an inspection mirror (01) at the rear of the cylinder head cover (1).

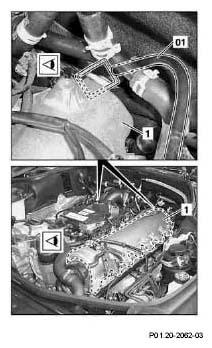

    Fig 1: Identifying Cylinder Head Cover
    G04839619
