Removal & Installation
- Remove driver seat.
- Remove instrument panel lower cover. See INSTRUMENT PANEL LOWER COVER
.

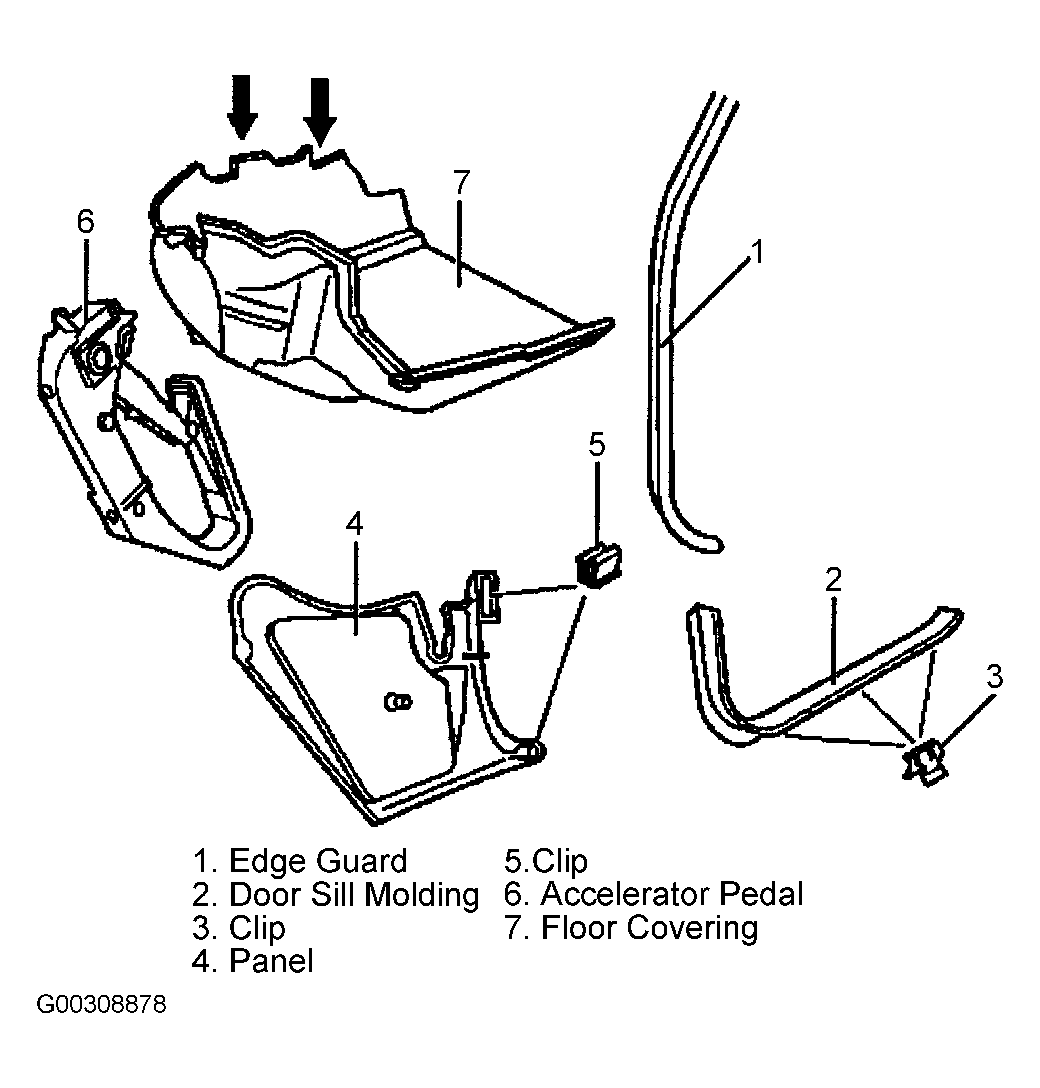

- Pull off door sill molding (2). See Fig 1
.
- Pull off edge guard (1) in lower area on A-pillar.
- Remove panel (4).
- Remove accelerator pedal (6). See ACCELERATOR PEDAL
.
- Lift floor covering (7) at rear, remove at center console and then remove towards rear.
- Installation is reverse of removal procedure. Insert floor covering (8) in area of center console (arrows).
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
