Attaching rear screen to center console - AN82.60-P-0002-01A

Model 220

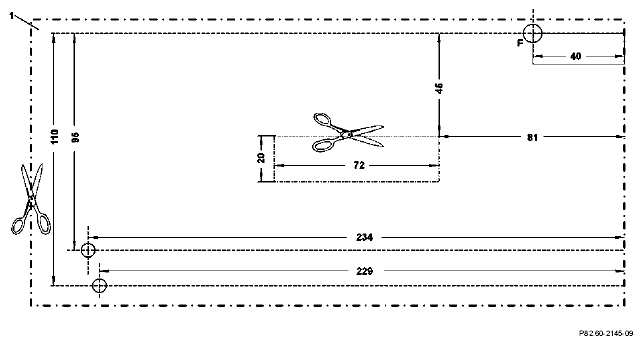

Fig 1: Identifying Drilling Template
G04852447
  1. Print out drilling template (1) for hole pattern of center console and enlarge to scale.

    IMPORTANT The illustration shows the hole pattern of the right side of the center console, the rear of the template is for the left side of the center console.

  2. Mask over center console (2) with adhesive tape in the rear area.

    IMPORTANT Avoid damage to the center console by working with care.

  3. Position drilling template (1) flush with the bottom edge on the right side of the console and fix position of locating hole (F) (arrow) with a screw in the mounting hole of the console.
  4. Mark hole pattern of the mounting holes (B) and of the cable leadthrough (K).
    Fig 2: Identifying Drilling Template And Mounting Holes
    G04852448
  5. Open the oddments tray of the center console (2) for drilling the holes.

    DANGER

    Do not drill into mechanism of oddments trays (arrow)!

    Fig 3: Locating Mechanism Of Oddments Trays Where Not To Drill
    G04852449
  6. Drill holes (B) with Ø 6.5 mm.

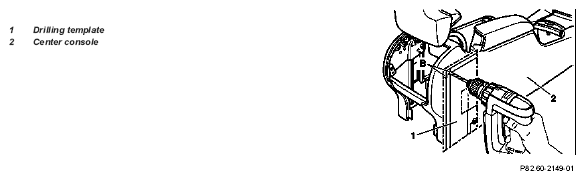

    Fig 4: Drilling Holes
    G04852450
  7. Work out cable leadthrough (K).

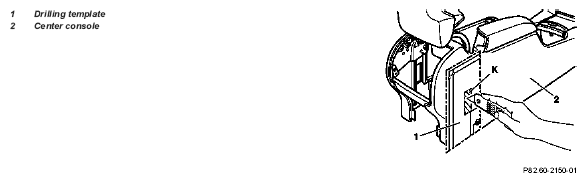

    Fig 5: Identifying Drilling Template And Center Console
    G04852451
  8. Route connection cables through the cable leadthroughs on the right and left at the center console.
  9. Insert the assembly screws (13) from the inside of the center console (2) through the side cheeks (12) of the attachment arm (11).
    Fig 6: Identifying Assembly Screws From Inside Of Center Console
    G04852452
  10. When installing the side cheeks (12), the connection cable must be inserted into the slot (arrow) in the attachment arm (11).

    IMPORTANT After installing, check clearance of connection cables on the right and left.

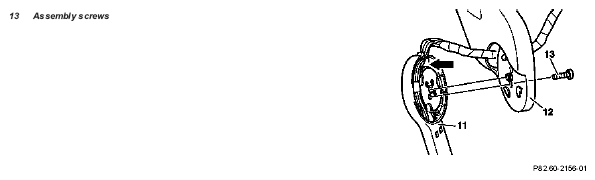

    Fig 7: Identifying Assembling Screws
    G04852453
  11. Insert covers (14) on right and left and run the connection cables through the locating plates of the covers (14) (arrow).
    Fig 8: Identifying Covers
    G04852454
  12. Swivel attachment arm (11) down.

    IMPORTANT Sockets of connection cables must still move freely (arrow) below the cover (14).

  13. Insert center console (2) into vehicle.
  14. Fit together the two sockets of the intermediate connector of the rear display system (X66) and pull on the existing foam grommets.

    IMPORTANT Do not damage any wiring harnesses when installing the center console.

    Fig 9: Identifying Attachment Arm And Intermediate Connector Of Rear Display System
    G04852455
