Retrofit CD changer in trunk - AN82.64-P-0001-04NO

Slide the CD player with changer (in trunk) (A2/6) into the bracket (1) and secure it in place on the left and right sides with 2 M4 x6 screws (21).
The mounting bracket (1) is already installed in vehicles with a navigation processor.

Fig 1: Identifying Mounting Bracket And CD Changer

Shown on vehicle with sound system (Code 810)
Expose the black 3-pin connector (24) (voltage supply for the CD changer) at the vehicle's standard wiring harness (23).
The black 3-pin connector (24) covered in foam is tied back at the vehicle's standard wiring harness (23) near the left wheel well or on the side wall (arrow).
Route the vehicle's standard wiring harness (23 as shown in the illustration and secure it in place with felt adhesive tape.
Ensure wiring harness is routed correctly and free of chafing points.

Do not buckle or extend fiber optical cable, routing radii must be greater than 25 mm!

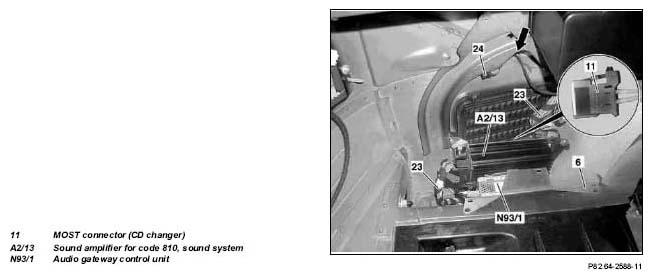

Fig 2: Identifying MOST Connector, Sound Amplifier And Audio Gateway Control Unit
Insert the MOST connector (11) and the black, 3-pin connector (24) (voltage supply) into the CD player with changer (in trunk) (A2/6).

Fig 3: Identifying MOST Connector And Black 3-Pin Connector
Position the CD changer bracket (1) above bracket (6) and secure it in place on the stud (3) with a nut.
Install screws (2) and (4).
The CD changer bracket (1) is locked into the bracket (6) with retaining lugs (25).

Do not buckle or extend fiber optical cable, routing radii must be greater than 25 mm! Be sure not to damage the standard wiring harness (23).

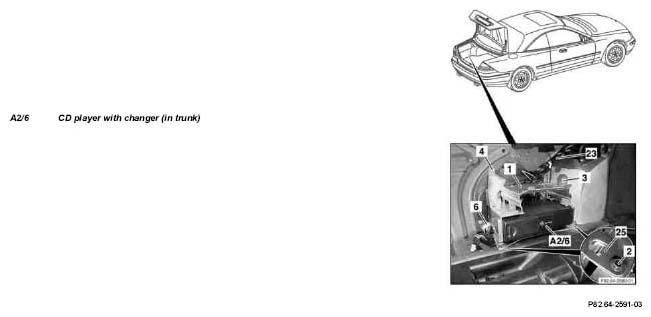

Fig 4: Identifying CD Player With Changer
