Retrofit CD changer in trunk - AN82.64-P-0001-04MA

Fasten CD player with changer (inside the trunk) (A2/6) with 4 screws, M4 x 6 (21) right and left on bracket of CD changer (1).

Fig 1: Identifying Bracket Screw And CD Changer

Shown on vehicle with TV tuner and sound amplifier
Insert D2B coupling (12) and black, 3-pin coupling (24) (voltage supply) into the CD player with changer (inside trunk) (A2/6).
Branched off line with black 3-pin coupling (24) is tied back on the existing standard wiring harnesses (23) near the left wheelhouse recess or directly on the wheelhouse near the threaded bolt (3).

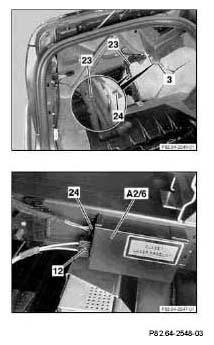

Fig 2: Identifying D2B Coupling And Black 3-Pin Coupling
Mount the bracket, CD changer (1) together with CD player with changer (inside trunk) (A2/6) on threaded bolt (3) with nut (5 mm) and M5 x 14 screws (2, 4) over left wheelhouse recess (see picture).
For vehicles with TV tuner, the bracket for TV tuner is also fastened with the screws M5 x 14 (2) on the left vehicle longitudinal member and the bracket for CD changer (1) is locked with catches (25) in the bracket for TV tuner (magnified figure)

When installing ensure that standard wiring harnesses (23) already routed on the wheelhouse are not damaged by the bracket, CD changer (1).

Do not buckle or extend fiber optical cable, routing radii must be greater than 25 mm!

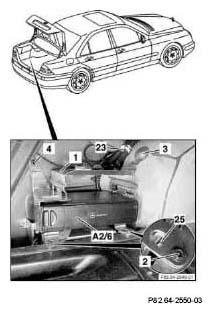

Fig 3: Identifying Standard Wiring Harnesses And CD Changer
