Retrofit optical waveguide wiring harness - AN82.70-P-0002-01MAA

  1. Prepare optical waveguide wiring harness (1) as shown in figure.

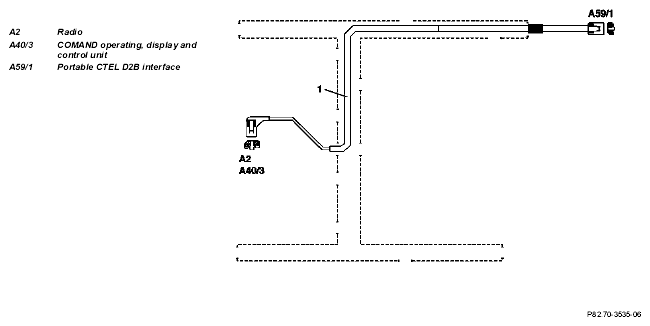

    Fig 1: Identifying Optical Waveguide Wiring Harness And Portable CTEL D2B Interface
    G04852556
  2. Route wiring harness (1) along existing leads in the vehicle as shown in figure.

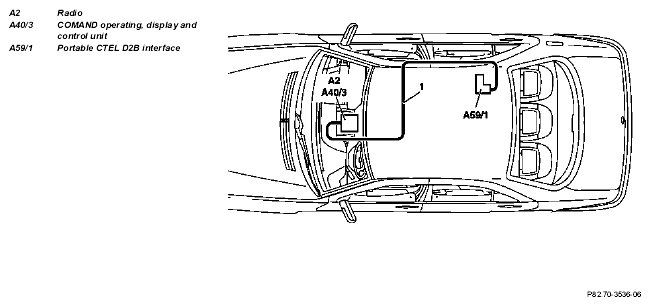

    Fig 2: Identifying Wiring Harness And Portable CTEL D2B Interface
    G04852557
  3. Route optical waveguide wiring harness (1) from portable CTEL D2B interface (A59/1) under the right-hand rear seat to the right-hand cable duct forwards and on to the cable duct below the righthand front passenger's seat to the radio recess.

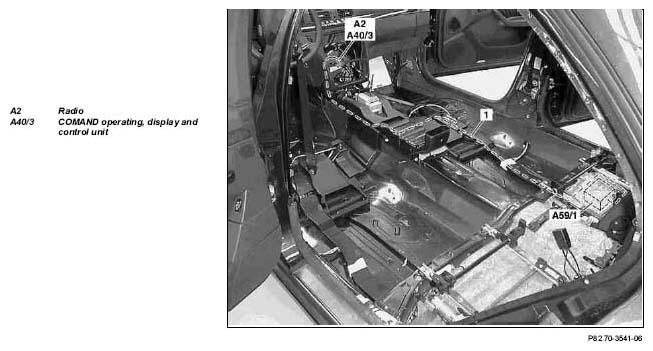

    Fig 3: Identifying Radio, COMAND Operating Display And Control Unit
    G04852558
