Front rubber mount of rear axle mount - Removal and installation - AR35.10-P-0041MB
MODEL 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection

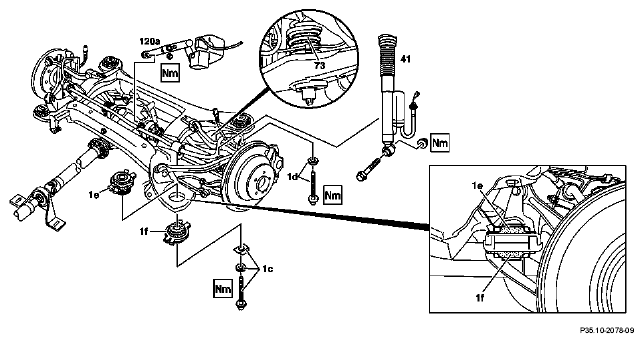

Fig 1: Identifying Front Rubber Mount Of Rear Axle Mount Remove/Install Components - Model 220.175/178
MODIFICATION NOTES
| 6.9.00 | Value changed from 95 Nm to: 1st stage 60 Nm 2nd stage 90° |
Value changed to BA35.10-P-1001-01A for model 220 | *BA35.10-P-1001-01A |
| 6.9.00 | Value changed from 95 Nm to: 1st stage 60 Nm 2nd stage 90° |
Value changed to BA35.10-P-1002-01A for model 220 | *BA35.10-P-1002-01A |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under load | Use only approved tensioning devices; shield off hazard area if necessary. Inspect special tools for damage and proper operation (visual inspection). Wear protective gloves. |
AS00.00-Z-0001-01A | |
| Replace self-locking nuts and bolts | |||
| 1 | Detach level sensor control rod (120a) from torsion bar link | *BA82.10-P-1001-02A | |
| 2 | Clamping rear spring | AR32.20-P-0200-06MB | |
| Figure | |||
| Figure | |||
| 3 | Detach spring strut (41) from spring control arm | *BA32.25-P-1005-04B | |
| 4 | Use a suitable attachment and pit lift or floor jack beneath rear-axle center assembly to support rear axle | ||
| 5 | Slacken and remove through bolts for attaching split rubber bushings, if installed | *BA35.10-P-1001-01D | |
| 6 | Unscrew front and rear mounting bolts (1c and 1d) on one side of rear axle | Installation: recut thread on frame floor with tap. |
|
| *BA35.10-P-1001-01A | |||
| *BA35.10-P-1002-01A | |||
| 7 | Carefully lower rear axle until the upper mount is accessible | Do not damage the brake hose and exhaust system. Disconnect exhaust system if necessary. |
|
| 8 | Remove/install front rubber mount in rear axle mount | AR35.10-P-0040-02MB | |
| Figure | |||
| Figure | |||
| Lubricant | *BR00.45-Z-1002-06A | ||
| 9 | Install in the reverse order |
| Number | Designation | Models 220.025/026/028/063/ 065/067/070/073/074/ 075/125/126/128/163/ 165/167/170/173/174/ 175/176/178/179/875/878 | |
|---|---|---|---|
| BA32.25-P-1005-04B | Nut, rear strut to spring control arm | Nm | 110 |
| Number | Designation | Model 220 | |||
|---|---|---|---|---|---|
| BA35.10-P-1001-01A | Self-locking bolt, front rear axle carrier rubber mount to frame floor | Nm | - | ||
| With bolt | Stage 1 | Nm | 60 | ||
| Flange ø 24 mm | Stage 2 | ∠° | 90 | ||
| With bolt | Stage 1 | Nm | 60 | ||
| Flange ø 26mm | Stage 2 | ∠° | 90 | ||
| BA35.10-P-1002-01A | Self-locking bolt, rear axle carrier rear rubber mount to frame floor | Nm | - | ||
| With bolt | Stage 1 | Nm | 60 | ||
| Flange ø 24 mm | Stage 2 | ∠° | 90 | ||
| with bolt | Stage 1 | Nm | 60 | ||
| Flange ø 26mm | Stage 2 | ∠° | 90 | ||
| Number | Designation | Model 220 with codes Z04, Z07 | |
|---|---|---|---|
| BA35.10-P-1001-01D | Bolt, split rubber mount to rear-axle carrier | Nm | 20 |
| Number | Designation | Model 220 except model 220 with code 487 | |
|---|---|---|---|
| BA82.10-P-1001-02A | Nut, lever sensor control rod to torsion bar link | Nm | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Lubricant | A 000 989 01 60 |
