Retrofit TV tuner - AN82.60-P-0001B: Notes

MODEL 220 with CODE (352a) COMAND operating and display system except CODE (862) TV preequipment except CODE (860) TV tuner

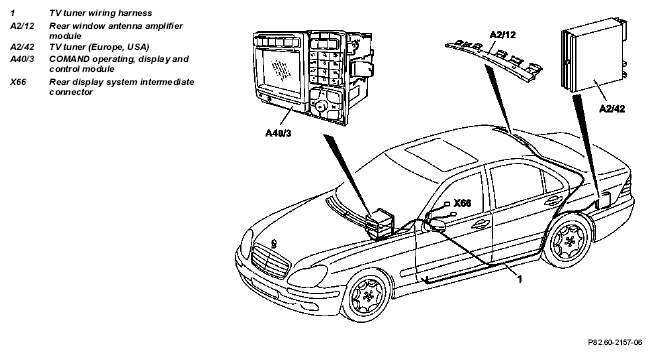

Fig 1: Identifying TV Tuner With Associated Components

	Removing
	Notes on COMAND software status Model 220		AH82.60-P-0001-01A
1	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery
			AR54.10-P-0003I
3	Remove COMAND operating, display and control module.	A sticker is located on the right side of the unit with the designation of the software status "Q15 and higher are TV capable". On units with Q14 and lower update software to status Q15 with update CD.
4	Remove cover above shift lever
			AR68.20-P-2310M
5	Remove driver's seat
			AR91.10-P-1000M
6	Remove left rear seat
7	Open left wiring ducts
8	Remove paneling from left and right C-pillars
9	Lower headliner at rear
10	Remove antenna amplifier module Replaced by new antenna amplifier module (A2/12)
			AR82.62-P-8300I
11	Remove side cover on left side of trunk	Replaced by new side paneling.
	Install
12	Retrofit TV tuner		AN82.60-P-0001-01A
13	Retrofit TV tuner wiring harness		AN82.60-P-0001-03A
14	Fit remaining parts to vehicle	11 - 1
15	Install software update for TV tuner	for control parts with Q14 and lower	AN82.60-P-0001-02B

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit

PARTS ORDERING NOTES

Part no.	Designation	Quantity
Group 82 (see EPC)	TV tuner	1
Group 82 (see EPC)	Bracket	1
Group 82 (see EPC)	M5 nut	1
Group 82 (see EPC)	5.5 x 16 sheet metal screws	3
Group 82 (see EPC)	TV tuner wiring harness	1
Group 82 (see EPC)	Antenna module (order according to vehicle equipment)	1
Group 69 (see EPC)	Side paneling in trunk on left	1
