Retrofitting CD changer - AN82.64-P-0001MA: Notes

MODELS 220.025 /026 /028 /063 /065 /067 /070 /075 /083 /084 /125 /126 /128 /165 /167 /170 /175 /176 /178 /183 /184 1# as of 1.9.02 with CODE (803) Model year 2003 except CODE (810) Sound system except CODE (813) Voice control system (VCS) except CODE (852) CTEL preinstallation assembly at dome except CODE (853) MB standard cellular telephone except CODE (854) MB portable cellular telephone except CODE (855) TELE AID

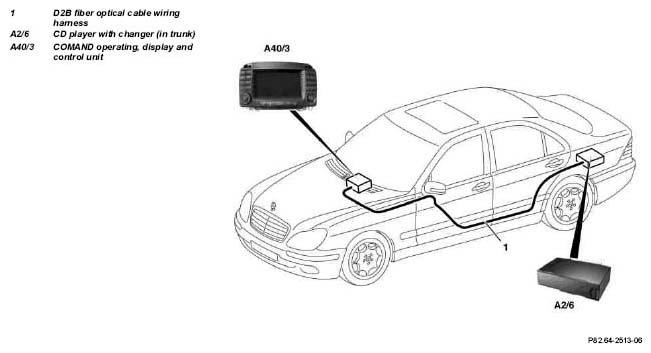

Fig 1: Identifying CD Player With Changer, COMAND Operating, Display And Control Unit

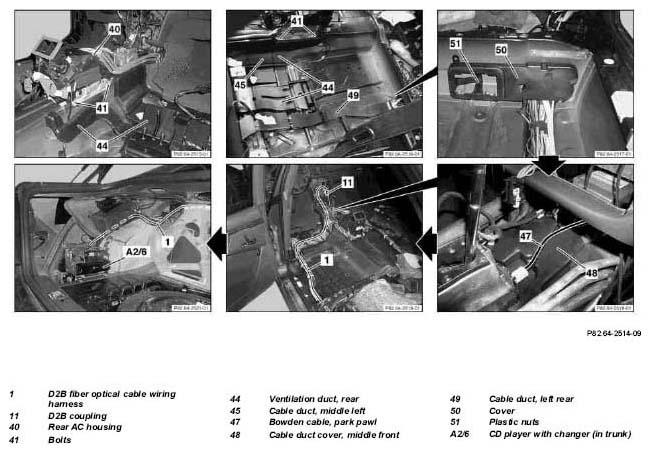

Fig 2: Identifying CD Changer Components (Model 220.1 With Code (582) Air Conditioning In Rear)

Air and cable ducts shown on model 220.1 with CODE (582) Air conditioning in the rear

Only for model 220 with CODE (582) Air conditioning in rear

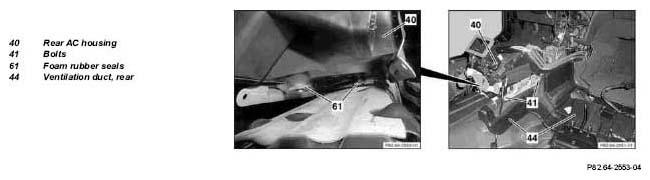

Fig 3: Identifying Rear AC Housing, Foam Rubber Seals And Ventilation Duct, Rear

Ventilation and cable ducts shown on Model 220.1 without CODE (582) Air conditioning in the rear

1. D2B fiber optical cable wiring harness

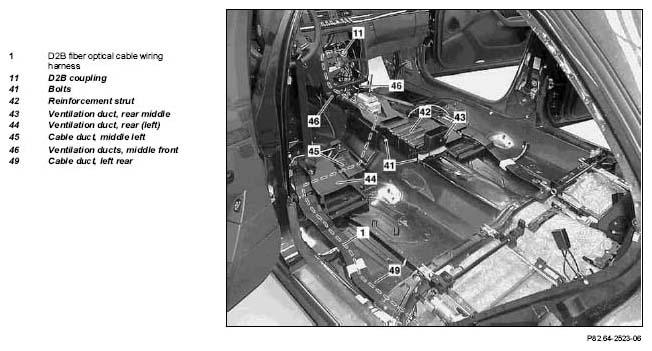

   Fig 4: Identifying D2B Fiber Optical Cable Wiring Harness Components



	Notes on fiber optical cable	Model 220 with CODE (819) CD changer (6-disc).	AH82.70-P-0001-02A
	Notes on D2B ring		AH82.70-P-0001-03MN
	Remove
1	Remove front seats	Due to the danger of damaging the airbag system  inside the seat and the removal of the center console, before disconnecting the electrical connector on the seat, the gear change selector must be in the N position,  the ignition key at the 0 position  and then the ground line is to be disconnected from the battery  . ↓
			AR91.10-P-1000MB
		Disconnect ground lead from battery	AR54.10-P-00031
2	Remove the COMAND operating, display and control unit (A40/3)
		With code (352a) command operating and display system.	AR82.85-P-74721
3	Remove floor covering in rear	Do not remove rear AC housing.
			AR68.20-P-4800M
4.1	Remove rear seat backrest
		Except  code (223b) Rear bench seat electrically adjustable. Except  code (224c) Electrically adjustable individual rear seats, with seat ventilation, seat heater and memory package.	AR91.12-P-1620MA
4.2	Remove rear seat backrest	Only on left side.
		With  code (223b) Rear bench seat electrically adjustable.	AR91.12-P-1620M
4.3	Remove rear seat backrest	Only on left side.
		With  code (224c) Electrically adjustable individual rear seats, with seat ventilation, seat heater and memory package.	AR91.12-P-1620MB
5.1	Remove seat adjustment device on rear seat	Only on left side.
		Models 220.0/1 with  code (223b) Rear bench seat electrically adjustable. Models 220.0/1 with  code (224c) Electrically adjustable individual rear seats, with seat ventilation, seat heater and memory package.	AR91.12-P-1520M
6.1	Remove screws (41) (4 pieces) left and right of the reinforcement strut (42) and then remove the strut (42)	without  code (582) Air conditioning in rear.
7.1	Remove ventilation duct, rear middle (43) backwards from the ventilation ducts, middle front (46)	Without  code (582) Air conditioning in rear.
8.1	Remove ventilation ducts, middle front (46) left and right, backwards from the blower box	without  code (582) Air conditioning in rear.
9.1	Remove ventilation duct, rear (44) (left) backwards from the ventilation duct, front left	Without  code (582) Air conditioning in rear.
9.2.	Loosen ventilation duct, rear (44) left and right on rear air conditioning box (40). Remove ventilation duct, rear (44) (left) backwards from the ventilation duct, front left	With  code (582) Air conditioning in rear.
10.1	Remove screws (41) (4 pieces) left and right of rear air conditioning box (40)	With  code (582) Air conditioning in rear.
11.1	Lift rear air conditioning box (40) about 20 mm and put a plastic wedge beneath	With  code (582) Air conditioning in rear. Caution!  Refrigerant lines and coolant lines should not be damaged when lifting. Installation:  Ensure correct seating of the foam rubber seals (61) on the rear air conditioning box (40).
12	Remove plastic nut (51) and detach cover (50) from vehicle floor
13	Detach Bowden cable, park pawl (47) from cable duct cover, middle front (48)	Do not displace nor damage Bowden cable, park pawl (47).
14	Detach and remove cable duct cover, middle front (48)
15	Open cable duct, middle left (45) and cable duct, left rear (49)
16	Remove coverings in trunk	If a left side wall paneling without access flap for the CD changer has been installed, this must be replaced with one with an access flap.
			AR68.30-P-4600M
	Install
17	Retrofit fiber optical cable wiring harness		AN82.70-P-0002-01MAB
	Cover fiber optical cable	Do not buckle or extend D2B fiber optical cable.  Install cover caps on optical waveguide connector and equipment connection.	AR82.95-P-0005-01A
18	Retrofit CD changer in trunk		AN82.64-P-0001-04MA
19	Fit remaining parts to vehicle	Steps 16 up to 1.
20	Perform startup with STAR DIAGNOSIS.	Perform nominal/actual configuration
21	Perform function check	See owner's manual.
22	Add special equipment to the vehicle data card and to the online vehicle data card	CD changer, 6-disc (code 819)
