ESP brake pressure sensor, location / task / function - GF42.45-P-4900D
MODEL 163 as of 1.9.02, 203 as of 1.8.01,
209 with CODE (472a) Electronic Stability Program (ESP)

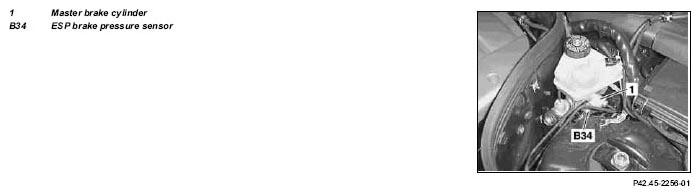

| ESP brake pressure sensor, location | On the left in the engine compartment | ||
| Task of ESP brake pressure sensor | Registers driver's braking requirements by measuring pressure at master brake cylinder. Generates electrical signal which corresponds to pressure of hydraulic fluid in front axle circuit . | ||
| ESP brake pressure sensor, function | Ceramic sensor element measures pressure of brake fluid. Its metal housing contains electronic module which supplies pressure signal as analog voltage to ESP/BAS control module (N47-5). |
