Remove/install differential lock vacuum reservoir - AR28.18-P-0010GR

MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341 /346

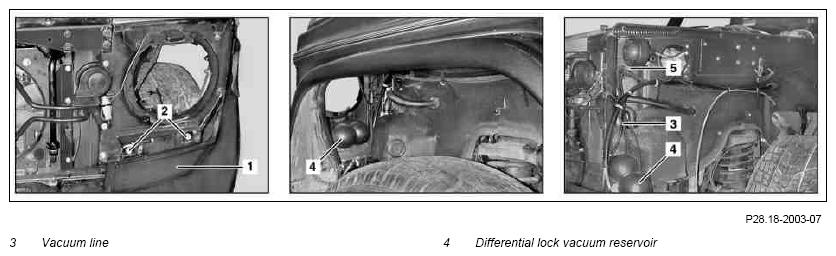

Fig 1: Identifying Differential Lock Vacuum Reservoir & Vacuum Line

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left fender liner
2	Remove left fender flare
3	Remove differential lock vacuum reservoir (4) from fender	Pull out the differential lock vacuum reservoir (4) until the connection of the vacuum line (3) is accessible. When doing so, do not kink the vacuum line (3).
4	Detach vacuum line (3) from differential lock vacuum reservoir (4)	Do not kink the vacuum line (3).
5	Remove differential lock vacuum reservoir (4)
6	Install in the reverse order
	Checking
7	Check that differential lock is functioning correctly
