Remove/install differential lock vacuum pump - AR28.18-P-0001GR
MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /340 /341

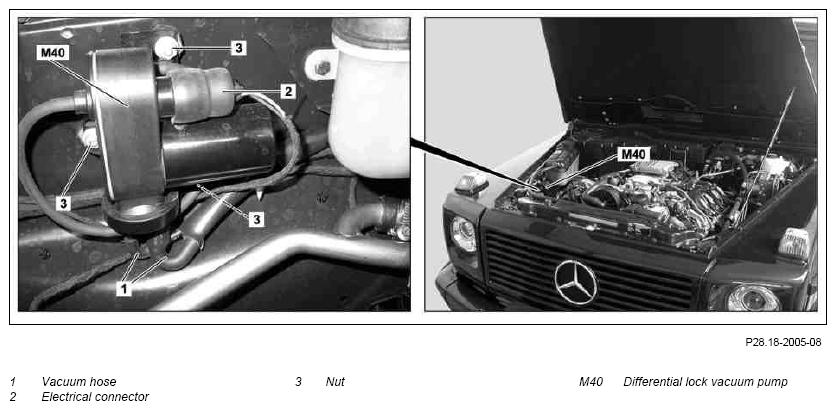

Shown on model 463.237
| Remove/install | |||
| 1 | Disconnect vacuum hoses (1) from differential lock vacuum pump (M40) | ||
| 2 | Remove right air intake pipe | ||
| 3 | Disconnect electrical connector (2) | ||
| 4 | Unscrew nuts (3) | ||
| 5 | Remove differential lock vacuum pump (M40) | ||
| 6 | Install in the reverse order | ||
| Checking | |||
| 7 | Check overall operation of differential lock actuation |
