Inspect poly V-belt for wear and damage - AP13.22-P-1351GA
ENGINE 112.945 in MODEL 463.209/232/233/244/245/250
ENGINE 113.962 in MODEL 463.206/240/241/247/248/249/254
ENGINE 113.982 in MODEL 463.243/246
ENGINE 113.993 in MODEL 463.270/271

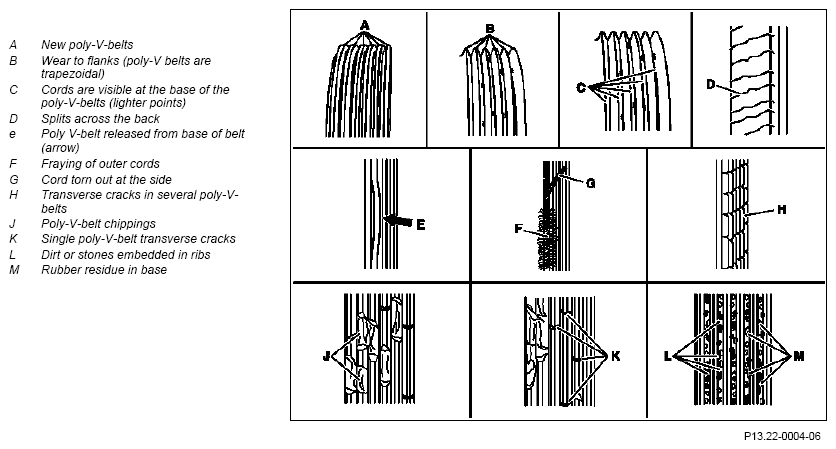

Damage patterns
| Risk of injury. Moving parts can pinch, crush or , in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Check | |||
| 1 | Inspect condition of poly V-belt Crank engine with starter | ||
| crank the engine using the starters. | Engine 112.945 in Model 463.209/232/233/244/245/250 Engine 113.962 in Model 463.206/240/241/247/248/249/254 Engine 113.982 in model 463.243/246 |
AR01.10-P-0110V | |
| Engine 113.993 in model 463.270/271 | AR01.10-P-0110GX | ||
| 2 | Establish damage chart | ||
| 3 | Replace V-ribbed belt | ||
| Remove/install poly V-belt | Engine 112.945 in Model 463.209/232/233/244/245/250 Engine 113.962 in model 463.206/240/241/247/248/249/254 Engine 113.982 in model 463.243/246 |
AR13.22-P-1202B | |
| Engine 113.993 in model 463.270/271 | AR13.22-P-1202GX |
