Remove/install ignition coils - AR15.12-P-2003A

ENGINES 112.910 in MODEL 202.026/086

ENGINES 112.920 in MODEL 202.029/089

ENGINES 112.921 in MODEL 210.063/081/263/281

ENGINES 112.922 in MODEL 220.063/163

ENGINES 112.923 in MODEL 129.059

ENGINES 112.940 in MODEL 208.365/465

ENGINES 112.941 in MODEL 210.065/082/265/282

ENGINES 112.942 in MODEL 163.154

ENGINES 112.943 in MODEL 129.064

ENGINES 112.944 in MODEL 220.065/165

ENGINES 112.945 in MODEL 463

ENGINES 113.940 in MODEL 210.070/270

ENGINES 113.941 in MODEL 220.070/170

ENGINES 113.960 in MODEL 215.375, 220.075/175/875

ENGINES 113.961 in MODEL 129.068

ENGINES 113.962/982 in MODEL 463

ENGINES 113.980 in MODEL 210.074/274

ENGINES 113.944 in MODEL 202.033/093

ENGINES 113.942 in MODEL 163.172

ENGINES 113.943 in MODEL 208.370/470

ENGINES 113.984 in MODEL 208.374/474

ENGINES 113.981 in MODEL 163.174

ENGINES 112.912 in MODEL 203.061/261, 209.361/461

ENGINES 112.946 in MODEL 203.064/264

ENGINES 112.947 in MODEL 170.465

ENGINES 112.960 in MODEL 170.466

ENGINES 113.986 in MODEL 215.373, 220.073/173

ENGINES 112.961 in MODEL 203.065/265

ENGINES 113.965 in MODEL 163.175

ENGINES 113.963 in MODEL 230.475

ENGINES 113.968 in MODEL 209.375/475

ENGINES 112.913 in MODEL 211.061/261

ENGINES 112.949 in MODEL 211.065/265

ENGINES 113.967 in MODEL 211.070/270

ENGINES 113.992 in MODEL 230.474

ENGINES 113.987 in MODEL 209.376/476

ENGINES 112.955 in MODEL 209.365/465

ENGINES 113.990 in MODEL 211.076/276

ENGINES 113.991 in MODEL 215.374, 220.074/174

ENGINES 112.916 in MODEL 203.081/281

ENGINES 112.953 in MODEL 203.084/284

ENGINES 112.972 in MODEL 220.067/167

ENGINES 112.973 in MODEL 230.467

ENGINES 112.970 in MODEL 163.157

ENGINES 112.975 in MODEL 220.087/187

ENGINES 113.948 in MODEL 220.083/183

ENGINES 113.966 in MODEL 220.084/184

ENGINES 112.917 in MODELS 211.080/280

ENGINES 112.954 in MODEL 211.082/282

ENGINES 113.969 in MODEL 211.083/283

ENGINES 113.988 in MODEL 203.076/276

ENGINES 113.993 in MODEL 463.270/271

ENGINES 113.989 in MODEL 171.473

ENGINES 113.995 in MODEL 230.472

Shown on engine 112

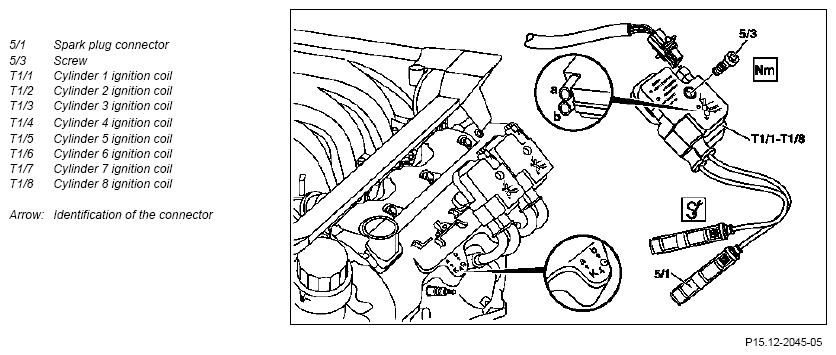

Fig 1: Identifying Ignition Coils

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

16.5.06

"Disconnect/connect battery ground line" removed

Model 203, 209,

	Remove/install
	Hazard from touching parts which conduct high voltages	Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system.	AS15.10-Z-0001-01A
	Notes on avoiding damage to ignition system		AH15.10-P-0002-01D
1	Deactivate service mode in TELE AID emergency call system	Only on model 463.270 with code: Tele-Aid car phone emergency call system ET2.	AR82.95-P-0005-03GR
	Notes on TELE AID emergency call system	Model 463.243/244/245/247/248/250/254/270/309/322/323/332/333 TELE AID car telephone emergency call system ET2	AH82.95-P-0001-01GA
2	Disconnect ground line from battery	Model 463 except model 463.241/248 with code 979 special protection version	AR54.10-P-0003G
		Model 463.241 with: special protection version code 979, special protection version FB4 with code ZS4, special protection version FB6 with code ZS6, special protection version FB7 with code ZS7, additional battery 100 Ah incl. cutoff relay CODE E26.	AR54.10-P-0003PV
		Model 463.248 with: special protection version, code 979, special protection version FB6, code ZS6, special protection version FB7, code ZS7, additional battery 100 Ah including cutoff relay, code E26.	AR54.10-P-0003PM
3	Unclip cover on front side of engine	Model 211, 215, 220, 230.475/476
4.1	Remove engine cover with integrated air filter	Except model 170.466, 203.065/076/265/276, 209.376/476 from 24.4.04, 211.076/276, 215.374, 220.074/174, 230.474, 463.270/271 The air filter is integrated in the engine cover. Remove the engine cover or the air filter housing by pulling it from the cylinder head covers vertically in the upward direction.
4.2	Remove air filter housing	Model 170.466, 203.065/265, 211.076/276, 215.374.220.74/174, 230.474	AR09.10-P-1150SVK
		Model 203.076/276, 209.376/476 from 24.4.04, 171.473	AR09.10-P-1150AC
		Model 463.270/271	AR09.10-P-1150GX
5	Remove screw (5/3)		*BA15.10-P-1001-04A
6	Detach spark plug connector (5/1) from the spark plugs	Pry off spark plug connector (5/1) using open-end wrench, double over the cylinder head cover of the spark plugs. Installation: Observe the identification of the connector (arrow) on the cylinder head cover and the ignition coil of cylinders 1 to 6 or 1 to 8 for the corresponding spark plug connector (5/1) Double open-ended wrench	Fig 2
7	Separate electrical connector of ignition coil of cylinder 1 to 6 (T1/1 to T1/6) or 1 to 8 (T1/1 to T1/8)	Installation: Install new cable ties.
8	Remove ignition coil of cylinder 1 to 6 (T1/1 to T1/6) or 1 to 8 (T1/1 to T1/8)
9	Install in the reverse order
10	Activate Service mode in Tele-Aid emergency call system	Only on model 463.270 with code: Tele-Aid car phone emergency call system ET2.	AR82.95-P-0005-03GR
	Notes on TELE AID emergency call system	Model 463.243/244/245/247/248/250/254/270/309/322/323/332/333 TELE AID car telephone emergency call system ET2	AH82.95-P-0001-01GA

IGNITION COIL

Number	Designation		Engine 112, 113
BA15.10-P-1001-04A	Bolt, ignition coil to cylinder head cover	Nm	8

Fig 2: Identifying Open-End Wrench, Double (110 589 01 01 00)

Courtesy of MERCEDES-BENZ USA
