Remove/install taillamp - AR82.10-P-4905GX

MODEL 461.302 /304 /305 /332 /333 /334 /340 /342 /344 except CODE (E10) Stealth lighting circuit

MODEL 463.200 /202 /204 /206 /207 /208 /209 /220 /222 /221 /224 /225 /227 /228 /230 /231 /232 /233 /236 /237 /240 /241 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /300 /303 /304 /306 /307 /308 /309 /320 /321 /322 /323 /324 /325 /327 /328 /330 /331 /332 /333 /336 /340 /341 /346

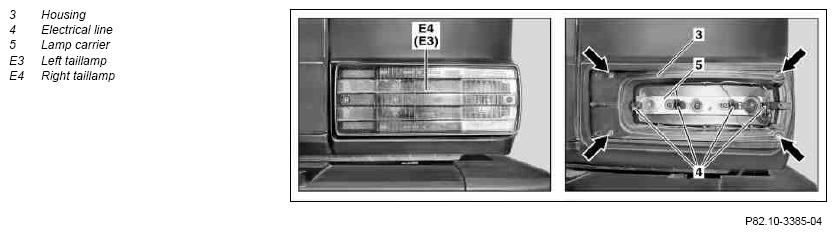

Fig 1: Identifying Taillamp Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove the lens from the left taillamp (E3) or the right taillamp (E4)	Installation:  Inspect gasket, install new part if necessary.
2	Remove electrical cables (4)	Mark electrical lines (4)
3	Remove the lamp carrier (5)
4	Remove housing (3)	Remove the screws (arrows).
5	Install in the reverse order
