Remove/install radio/TV antenna amplifier module - AR82.62-P-8310GR
MODEL 463.222 /237 /243 /244 /245 /246 /247 /249 /270 /271 /322 /323 /332 /333 /336 /340 /341 /346
MODEL 463.236 /248 except CODE (979) Special protection version
| Remove/install | |||
|---|---|---|---|
| 1 | Activate service mode in Telematic Alarm Identification on Demand (emergency call system) (TELE AID) | Only on model 463.243/244/245/322/323/332/333 with code (ET2) TELE AID car telephone emergency call system, Model 463.247/248/270 up to 1.4.07 with code (ET2) TELE AID car telephone emergency call system |
AR82.95-P-0005-03GR |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground line of battery (G1) | AR54.10-P-0003G | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3 | Remove headliner | AR68.30-P-4300GR | |
| 4 | Disconnect connector (X39/32) | ||

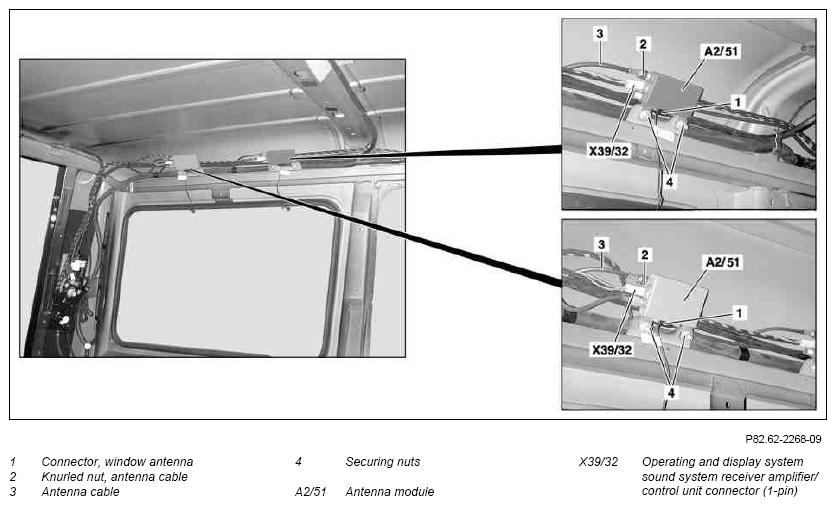

| 5 | Disconnect window antenna connector (1) | ||
| 6 | Remove antenna cable (3) | ||
| 7 | Unscrew retaining nuts (4) | ||
| 8 | Remove antenna modules (A2/51) | ||
| 9 | Install in the reverse order | ||
| 10 | Deactivate service mode in Telematic Alarm Identification on Demand | Only on model 463.243/244/245/322/323/332/333 with code (ET2) TELE AID car telephone emergency call system, model 463.247/248/270 up to 1.4.07 with code (ET2) TELE AID car telephone emergency call system |
AR82.95-P-0005-03GR |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| 11 | Perform basic programming | AR00.19-P-0200P | |
| 12 | Read out fault memory, erase if necessary | Stored faults which can result from cables being disconnected or from simulation during removal and installation or test work, have to be processed and erased in the fault memories after completing the work. |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
