Remove/install fog lamps - AR82.10-P-1835GY
MODEL 463.202 /222 /236 /237, 463.247 /248 /249 /254 /270 /271 as of 1.9.06, 463.303 /306 /336 /340 /341 /346

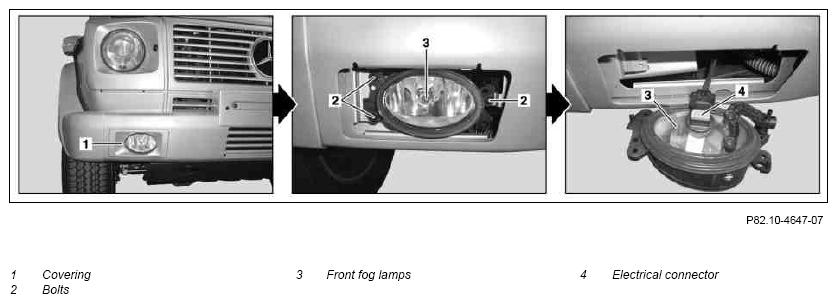

Shown on right front fog lamp
| Remove/install | |||
|---|---|---|---|
| 1 | Remove cover (1) | ||
| 2 | Unscrew bolts (2) of front fog lamp (3) | ||
| 3 | Remove front fog lamp (3) | ||
| 4 | Disconnect electrical connector (4) | ||
| 5 | Install in the reverse order | ||
| 6 | Check headlamp adjustment | ||
| Check and correct headlamp adjustment | AP82.10-P-8260G |
