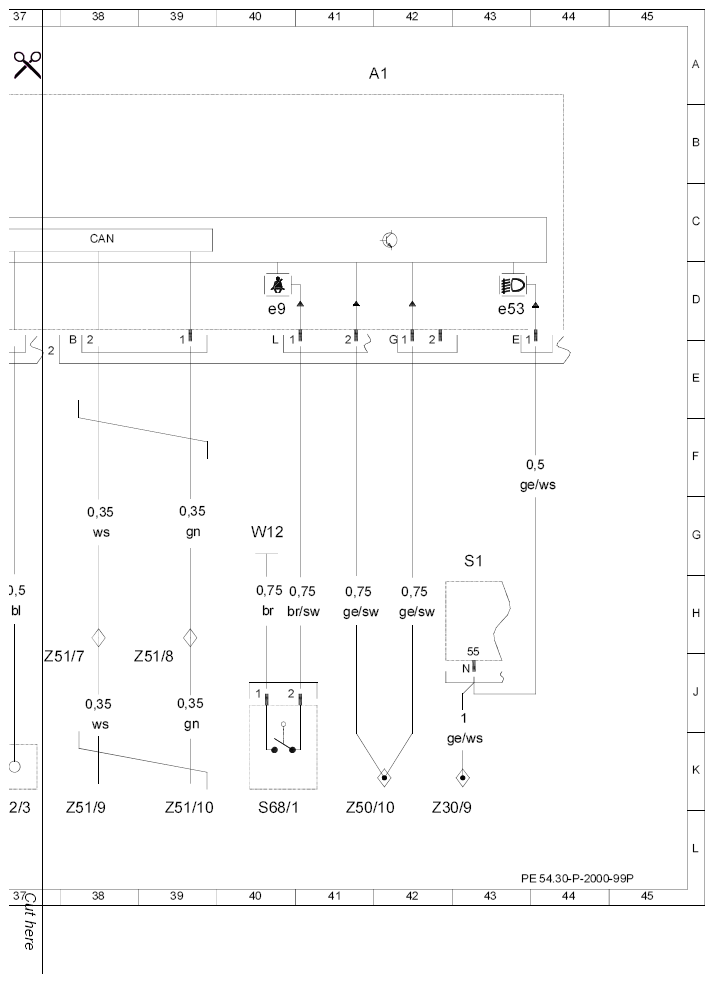

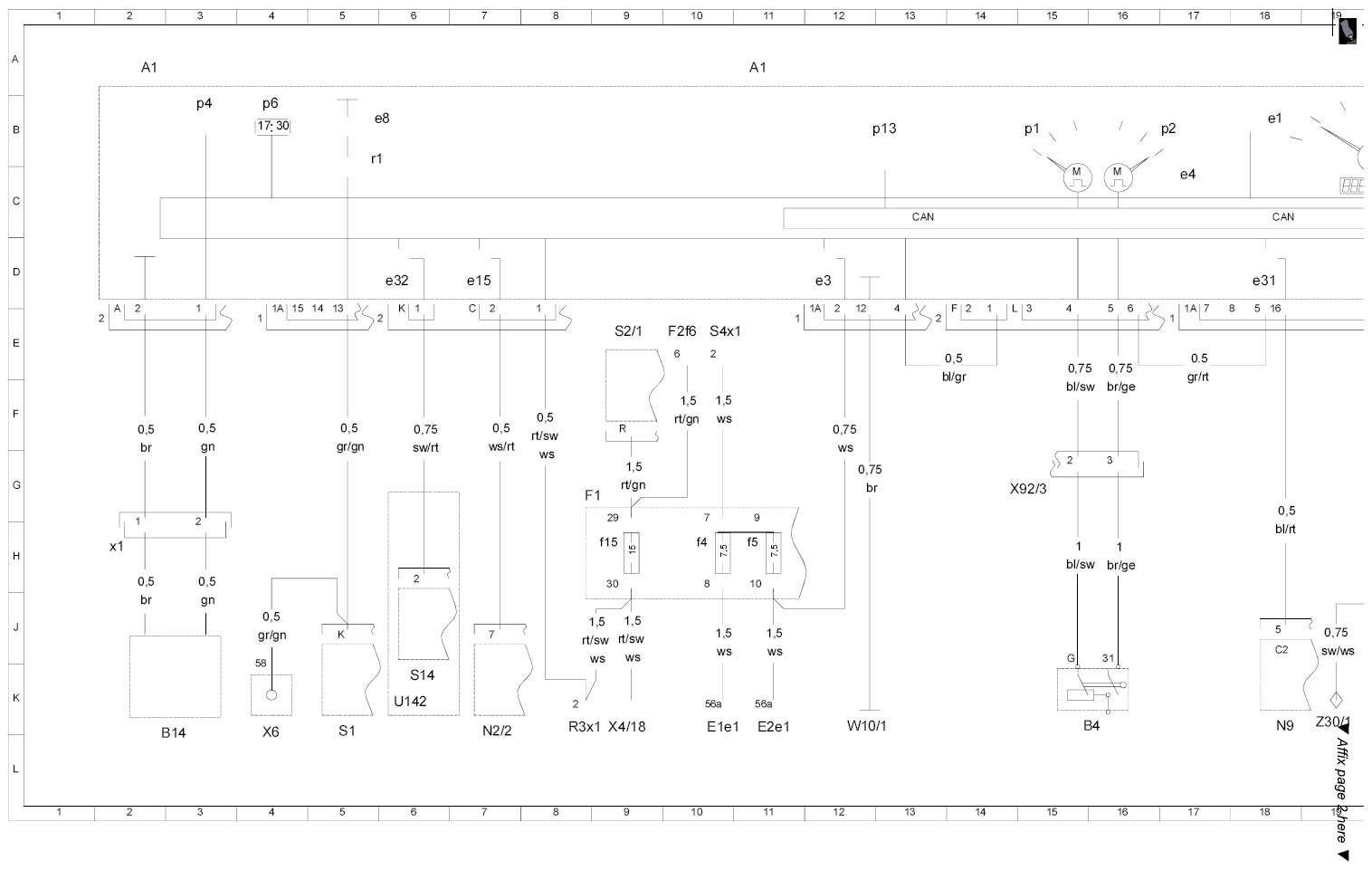

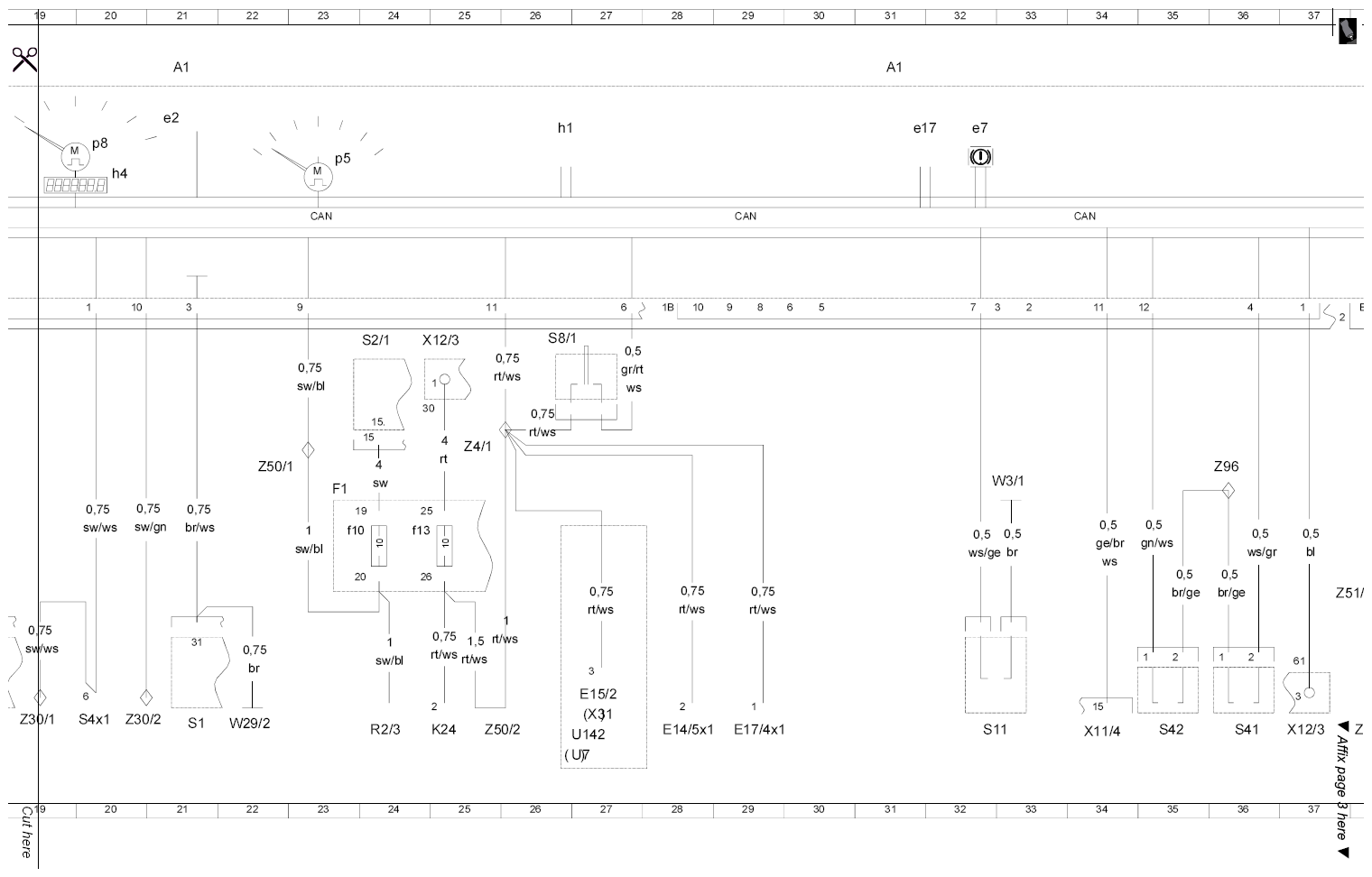

Wiring diagram of instrument cluster (IC)/display instruments/warning devices - PE54.30-P-2000-99P
MODEL 463.### 2# up to 31.5.12 with ENGINE 112.945 Right-hand steering; instrument cluster with ASSYST
MODEL 463.### 2# up to 31.5.12 with ENGINE 113.962 Right-hand steering; instrument cluster with ASSYST
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 2A |
| A1 | Instrument cluster | 11A |
| A1 | Instrument cluster | 21A |
| A1 | Instrument cluster | 31A |
| A1 | Instrument cluster | 41A |
| A1e1 | Left turn signal indicator lamp | 18B |
| A1e15 | Airbag indicator and warning lamp | 7D |
| A1e17 | ABS indicator lamp | 31B |
| A1e2 | Right turn signal indicator lamp | 21B |
| A1e3 | High beam indicator lamp | 12D |
| A1e31 | Trailer turn signal indicator lamp | 18D |
| A1e32 | Rear window heater indicator lamp | 6D |
| A1e4 | Fuel reserve indicator lamp | 17C |
| A1e53 | Front fog lamps indicator lamp | 43D |
| A1e7 | Brake fluid, parking brake and brake distribution warning lamp | 32B |
| A1e8 | Instrument illumination | 5B |
| A1e9 | Seat belt warning lamp | 40D |
| A1h1 | Warning buzzer | 26B |
| A1h4 | Main odometer | 20C |
| A1p1 | Coolant temperature gauge | 15B |
| A1p13 | Multifunction display | 12B |
| A1p2 | Fuel level indicator in instrument cluster | 17B |
| A1p4 | Outside temperature indicator | 3B |
| A1p5 | Tachometer | 23C |
| A1p6 | Electronic clock | 4B |
| A1p8 | Electronic speedometer | 20B |
| A1r1 | Instrument illumination variable resistor | 5C |
| B14 | Outside temperature display temperature sensor | 2L |
| B14x1 | Outside temperature indicator temperature sensor connector | 2H |
| B4 | Fuel level sensor | 15L |
| E14/5x1 | Left and right vanity mirrors connector | 28L |
| E15/2 | Front dome lamp with shut-off delay and front reading lamp | 27K |
| E17/4x1 | Right front entrance/exit lamp connector | 29L |
| E1e1 | Left high beam | 10L |
| E2e1 | Right high beam | 11L |
| F1 | Fuse box | 8G |
| F1 | Fuse box | 23G |
| F1f10 | Fuse 10 | 23H |
| F1f13 | Fuse 13 | 24H |
| F1f15 | Fuse 15 | 9H |
| F1f4 | Fuse 4 | 10H |
| F1f5 | Fuse 5 | 11H |
| F2f6 | Fuse 6 | 10E |
| K24 | Comfort shift relay | 25L |
| N2/2 | Emergency tensioning retractor (ETR [GUS]) with airbag (AB) control unit | 7L |
| N9 | Turn signal/hazard warning flasher relay | 18L |
| R2/3 | Right washer nozzle heater | 24L |
| R3x1 | Cigar lighter connector | 8L |
| S1 | Light switch module | 5L |
| S1 | Light switch module | 21L |
| S1 | Light switch module | 43H |
| S11 | Brake fluid indicator switch | 32L |
| S14 | Heated rear window switch | 6K |
| S2/1 | Ignition/starter switch | 9E |
| S2/1 | Ignition/starter switch | 24E |
| S41 | Coolant level indicator switch | 36L |
| S42 | Windshield washer fluid level indicator switch | 35L |
| S4x1 | Combination switch connector | 10E |
| S4x1 | Combination switch connector | 20L |
| S68/1 | Left front seat belt buckle and seat belt warning switch | 40L |
| S8/1 | Warning buzzer contact (illumination) | 26E |
| U142 | Not valid for convertible | 6K |
| U142 | Not valid for convertible | 26L |
| U7 | Valid for convertibles | 26L |
| W10/1 | Ground (electronics) | 12L |
| W12 | Ground (center console) | 40G |
| W29/2 | Ground (right A-pillar) | 22L |
| W3/1 | Ground (right front wheelhouse) | 32G |
| X11/4 | Data link connector | 34L |
| X12/3 | Circuit 30, 15, 61 terminal block (3-pin) | 24E |
| X12/3 | Circuit 30, 15, 61 terminal block (3-pin) | 37L |
| X31 | Dome lamp/reading lamp connector | 27K |
| X4/18 | Circuit 15R terminal block (1-pin) | 9L |
| X6 | Circuit 58 terminal block (2-pin) | 4L |
| X92/3 | Frame connector (22-pin) | 14G |
| Z30/1 | Left turn signal indicator connector sleeve | 19L |
| Z30/2 | Right turn signal indicator connector sleeve | 20L |
| Z30/9 | Left and right fog lamp connector sleeve | 42L |
| Z4/1 | Circuit 30 (fused) connector sleeve, convenience and rear dome lamp | 25G |
| Z50/1 | Connector sleeve 1 | 22G |
| Z50/10 | Right interior lights door contact connector sleeve | 41L |
| Z50/2 | Connector sleeve 2 | 25L |
| Z51/10 | CAN (low) 2 connector sleeve | 39L |
| Z51/7 | CAN (high) 1 connector sleeve | 37J |
| Z51/8 | CAN (low) 1 connector sleeve | 38J |
| Z51/9 | CAN (high) 2 connector sleeve | 38L |
| Z96 | Coolant/washer fluid connector sleeve | 36G |
