Remove/install underride guard - AR88.30-P-0010MG

MODEL 463.246 with ENGINE 113.982 AMG stainless steel underride guard

MODEL 463.271 with ENGINE 113.993

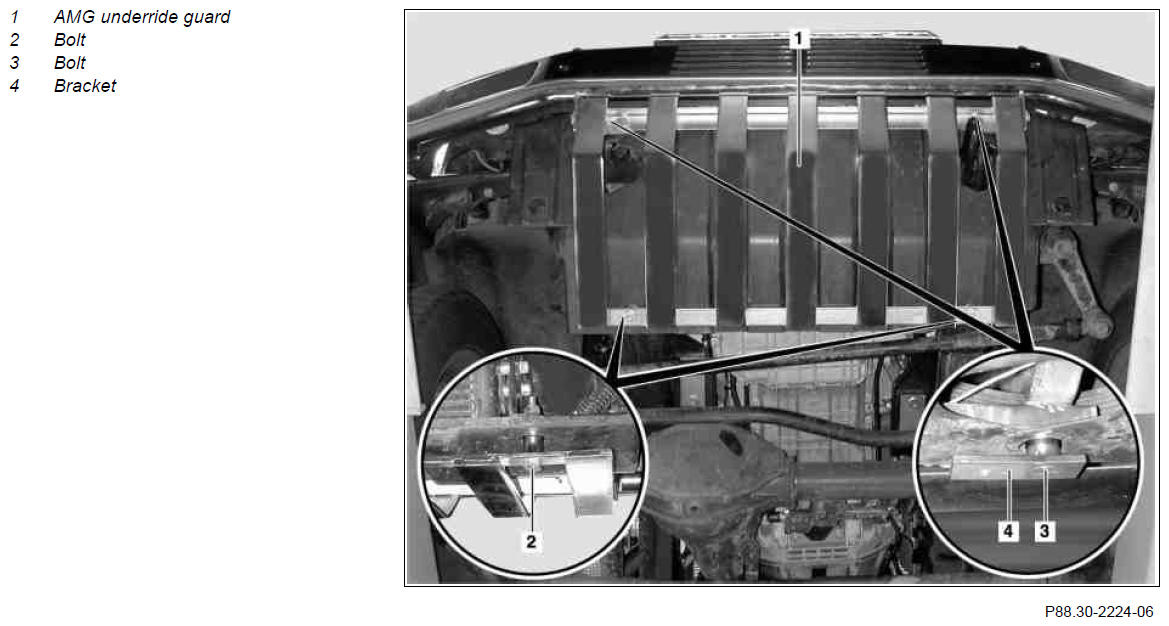

Fig 1: Identifying AMG Underride Guard, Bolts And Bracket

Courtesy of MERCEDES-BENZ USA

	Remove/Install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift/jack up vehicle		AR00.60-P-1000G
2	Unscrew bolts (2) from AMG underride guard (1)
3	Unscrew bolts (3) from AMG underride guard (1) at front	Original underbody protection remains on vehicle
4	Unscrew bracket (4)
5	Install in the reverse order
