Remove/install side step - AR88.30-P-2400GR

MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341 /346 with CODE (T84) Left and right stainless steel running boards

Shown on right front vehicle

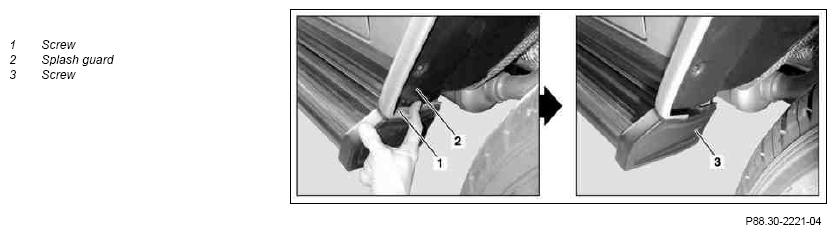

Fig 1: Identifying Splash Guard & Screws

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with wheelbase 2850 mm

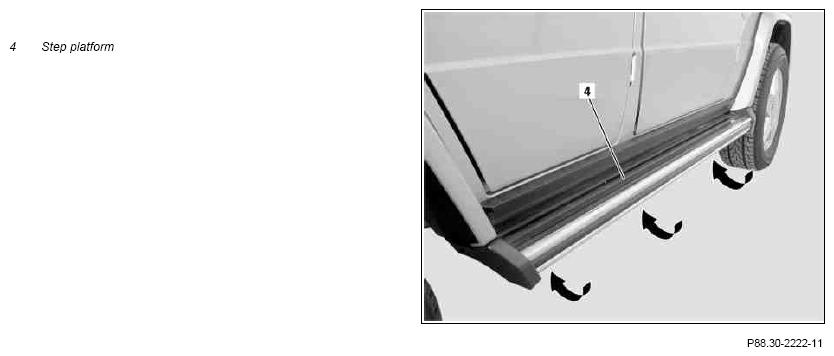

Fig 2: Identifying Step Platform

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Press in splash guard (2) and unscrew bolt (1) from fender flare
2	Remove bolt (3)
3	Remove running board (4) from brackets	The running board is fastened to three brackets with 2 nuts (arrows) each.
4	Remove running board (4).
5	Install in the reverse order
