Remove/install rear bumper - AR88.20-P-2200GG

MODEL 463.200 /204 /206 /207 /208 /209 /220 /221 /224 /225 /227 /228 /230 /231 /232 /233 /240 /241 /300 /304 /307 /308 /320 /321 /324 /325 /327 /328 /330 /331

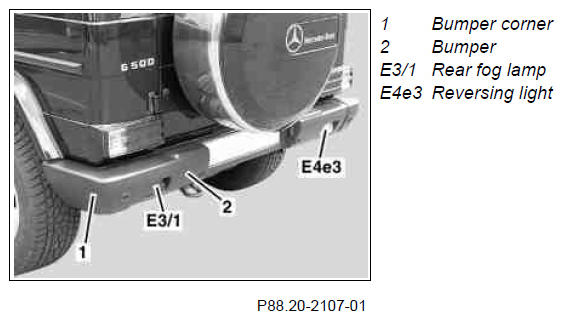

Fig 1: Identifying Rear Bumper Components

Courtesy of MERCEDES-BENZ USA

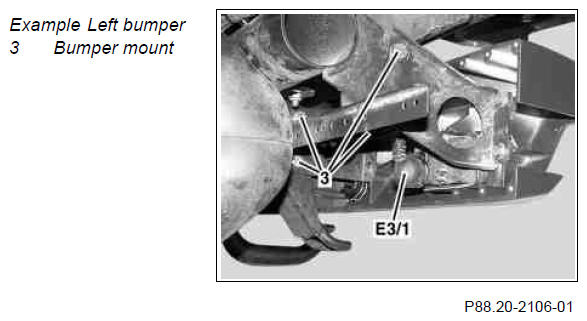

Fig 2: Identifying Bumper Mounts And Rear Fog Lamp Connection

Courtesy of MERCEDES-BENZ USA

	Remove, Install
1	Remove bumper corners (1)		AR88.20-P-0010G
2	Disconnect cable from rear fog lamp (E3/1)
3	Disconnect cable from backup lamp (E4e3)
4	Remove license plate illumination
5.1	Disconnect cable from backup assist sensors	Only with code (J44) ultrasonic backup assist
6	Unscrew screws (3) from bumper (2)	Have second man help unscrew bumper. Installation:  Clamp mud guard holder beneath.
7	Reinstall in opposite order
