Remove/install headlamp cover - AR88.00-P-2100GR

MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341 /346

Shown on left side of vehicle

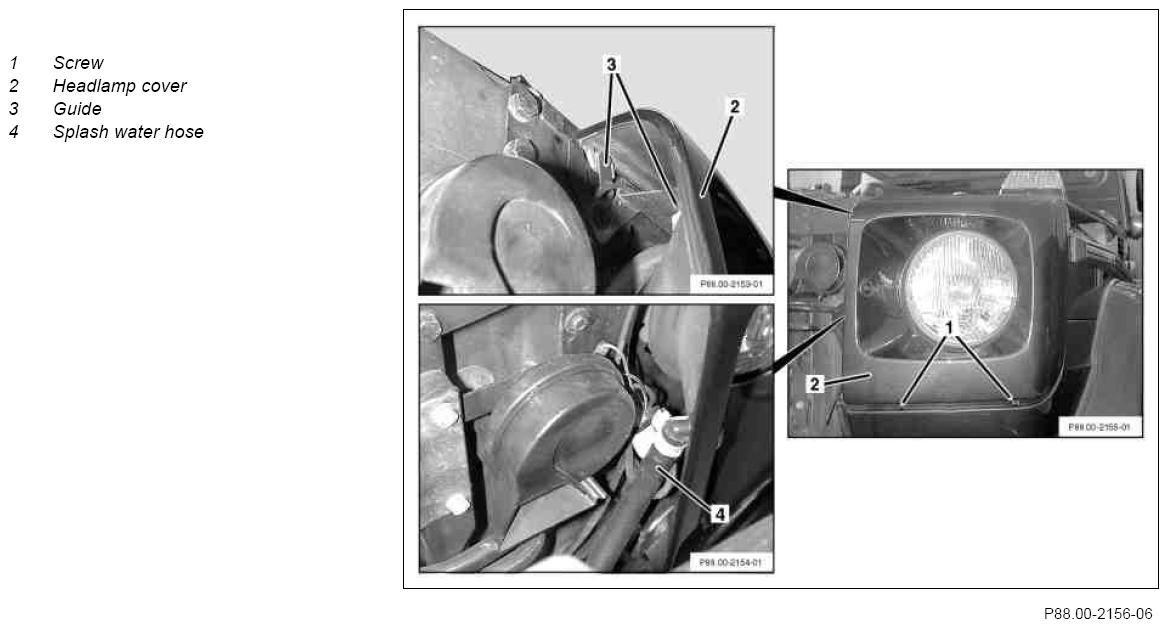

Fig 1: Identifying Headlamp Cover Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Loosen screws (1)
2	Remove headlamp cover (2) upward	Carefully press headlamp cover (2) upward out of both upper guides (3), danger of breakage. On vehicles with navigation system, when removing left headlamp cover (2) observe left front GPS antenna fastened behind.
3	Remove splash water hose (4) from headlamp cleaning system	Carefully remove splash water hose (4). Danger of breaking connection elements!
4	Install in the reverse order
5	Check headlamp cleaning system for proper function
