Remove/install fuel filler flap central locking motor - AR80.20-P-4004GR
MODEL 463.202 /222 /237 /243 /244 /245 /246 /247 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341 /346
MODEL 463.236 /248 except CODE (979) Special protection version

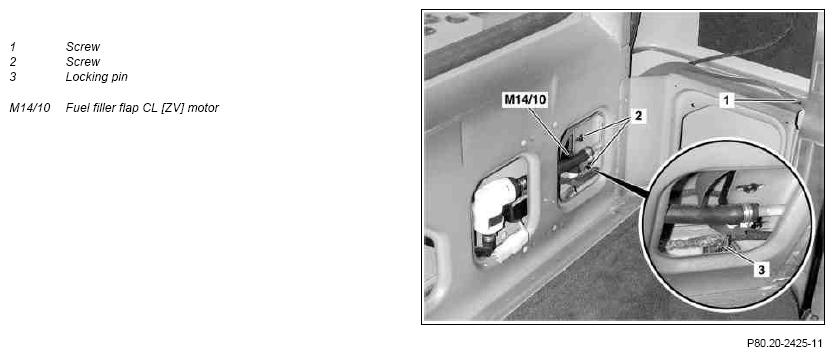

Shown on model 463.248
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| 1 | Remove side wall lining | ||
| Model 463.243/245/246/249/ 323/333 up to 31.5.04 Model 463.248 up to 31.5.04 |
AR68.30-P-1450GN | ||
| Model 463.243/245/246/248/249/323/333 from 1.6.04, Model 463.236/237/270/271/341/346 |
AR68.30-P-1450GX | ||
| Model 463.222/244/247/322/332/336/340/ station wagon, wheelbase 2400 mm | AR68.30-P-1450GM | ||
| 463.202/250/254/303/306/309 hydraulic soft top |
AR68.30-P-1450GA | ||
| 2 | Remove screw (1) from tensioning strap for tank flap emergency release | Only on model 463.222/236/237/243/244/245/246/247/248/249/270/271/322/323/332/333/336/340/341/346 | |
| 3 | Remove both bolts (2) from fuel filler flap CL motor (M14/10) | ||
| 4 | Pull lock pin (3) out of guide | ||
| 5 | Remove tank flap CL motor (M14/10) from side wall | on model 463.222/236/237/243/244/245/246/247/248/249/270/271/322/323/332/333/336/340/341/346 tilt toward rear |
|
| 6 | Unthread tensioning strap for tank flap emergency release from locking pin (3) | Only on model 463.202/250/254/303/306/309 | |
| 7 | Disconnect connector on fuel filler flap CL motor (M14/10x1) from fuel filler flap CL motor (M14/10) | ||
| 8 | Install in the reverse order | ||
| 9 | Perform function test |
