Disconnect/connect lines to underbody - AR61.00-P-0010-01GR

Remove retainer (6) and remove shift rod (8) from intermediate lever (3).
Installation: Replace locking element (6) and bushing (7).

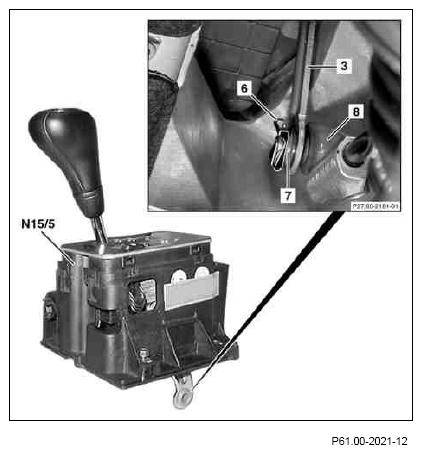

Fig 1: Identifying Intermediate Lever Components
Courtesy of MERCEDES-BENZ USA
Remove shield (A).
Only on model 463.244/247/250/254/303/306/309/322/332/336/340

Fig 2: Identifying Shield
Courtesy of MERCEDES-BENZ USA
Remove ground line from ground (W42).
Disconnect electrical connector (9) from transfer case actuator motor (M46/2).

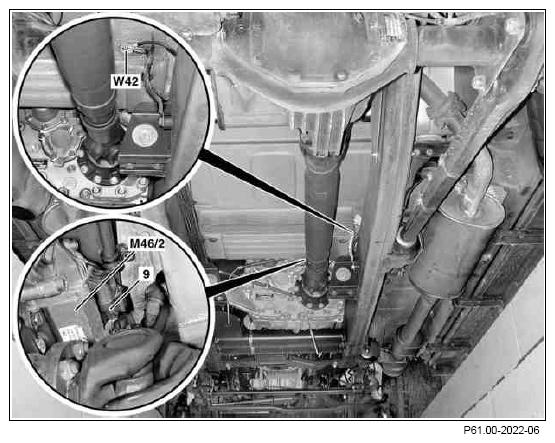

Fig 3: Identifying Ground, Electrical Connector And Transfer Case Actuator Motor
Courtesy of MERCEDES-BENZ USA
Disconnect degasing hose (10) from battery at connection.
Remove mount (11) for Bowden cable (13) of left and right parking brake from underbody.
Shown on vehicles with wheelbase of 2850 mm, left side

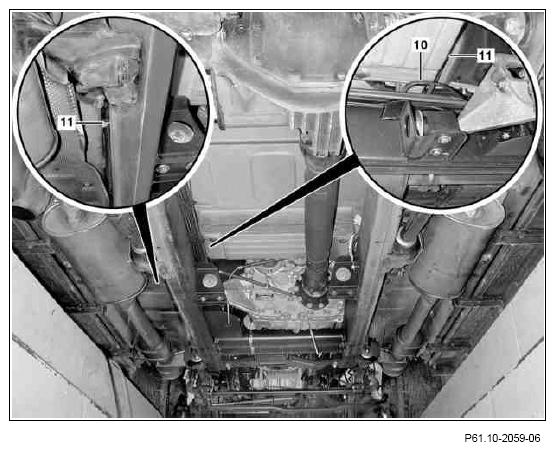

Fig 4: Identifying Bowden Cable, Mount & Degasing Hose
Courtesy of MERCEDES-BENZ USA
Unscrew both adjusting nuts (12).
Installation: Adjust parking brake.
Unhook both Bowden cables (13) on parking brake from parking brake lever (14) and slide downward through guides (15).
Install in the reverse order.

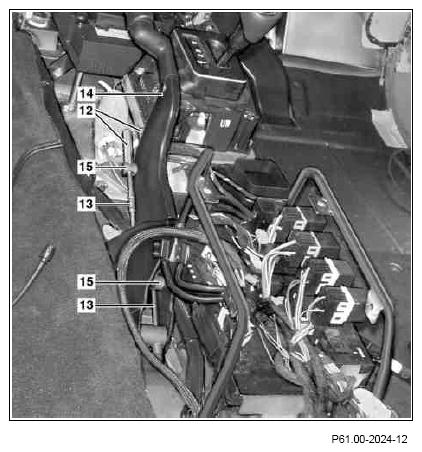

Fig 5: Identifying Adjusting Nuts, Bowden Nuts, Parking Brake Lever And Guides
Courtesy of MERCEDES-BENZ USA
