Remove/install center high-mounted stop lamp - AR82.10-P-5375SG

MODEL 461 with CODE (ZS4) Special protection version FB4 with CODE (ZS6) Special protection version FB6 with CODE (ZS7) Special protection version FB7

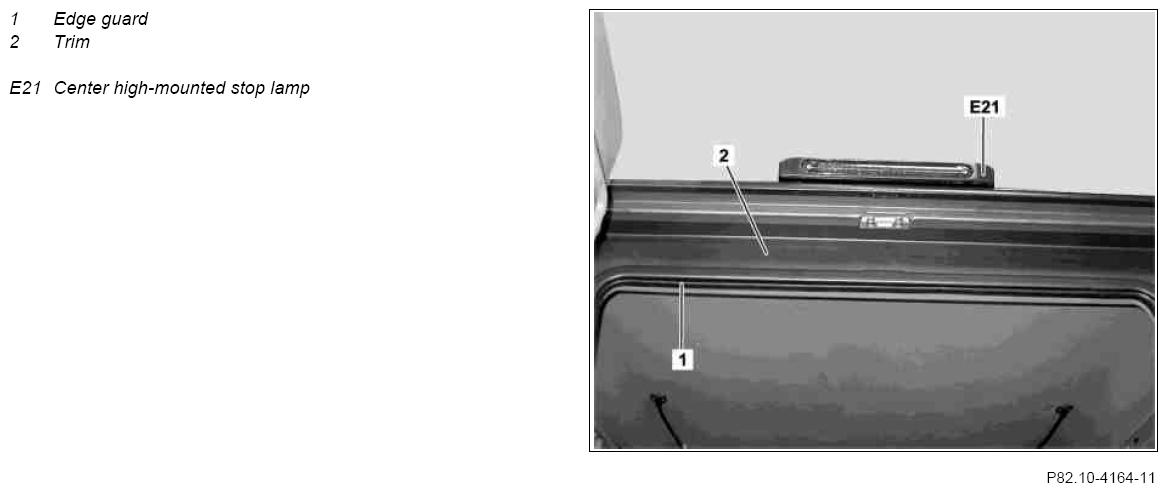

Fig 1: Identifying Center High-Mounted Stop Lamp, Edge Guard And Trim

Courtesy of MERCEDES-BENZ USA

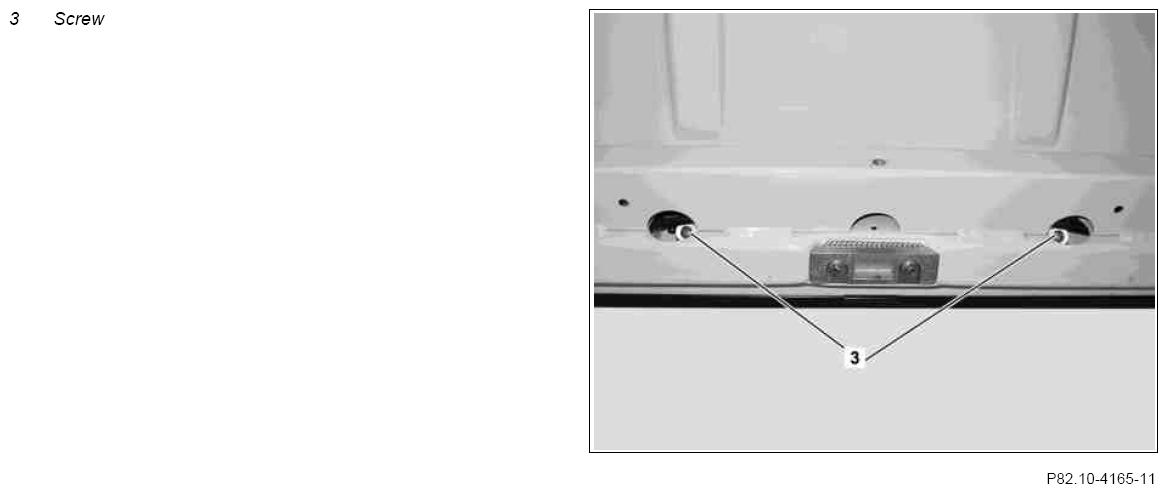

Fig 2: Identifying Screws

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove edge guard (1)
2	Remove cover (2)	The trim (2) is fastened in place using a Velcro fastener.	Fig 3
		Installation:  Check Velcro strip, replace if necessary. Self-adhesive Velcro fastener	*BR00.45-Z-1084-02A
3	Remove bolts (3)
4	Remove center high-mounted stop lamp (E21)
5	Detach connector for center high-mounted stop lamp (E21)
6	Install in the reverse order
7	Perform a function test

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
