| F2 |
Fuse box (8 fuses) |
12 B |
| F2f1 |
Fuse 1 |
12 C |
| F2f4 |
Fuse 4 |
13 C |
| K24 |
Comfort shift relay |
10 B |
| M12/1 |
Tilting/sliding roof |
15 L |
| M12/1k1 |
Roof fore/aft relay 1 |
16 H |
| M12/1k2 |
Roof raise/lower relay 1 |
16 K |
| M12/1m1 |
Tilting/sliding roof motor |
15 J |
| M12/1s1 |
Sliding position "open" microswitch |
13 H |
| M12/1s2 |
Tilt position "open" microswitch |
13 J |
| N57/1 |
Convenience feature control unit |
5 B |

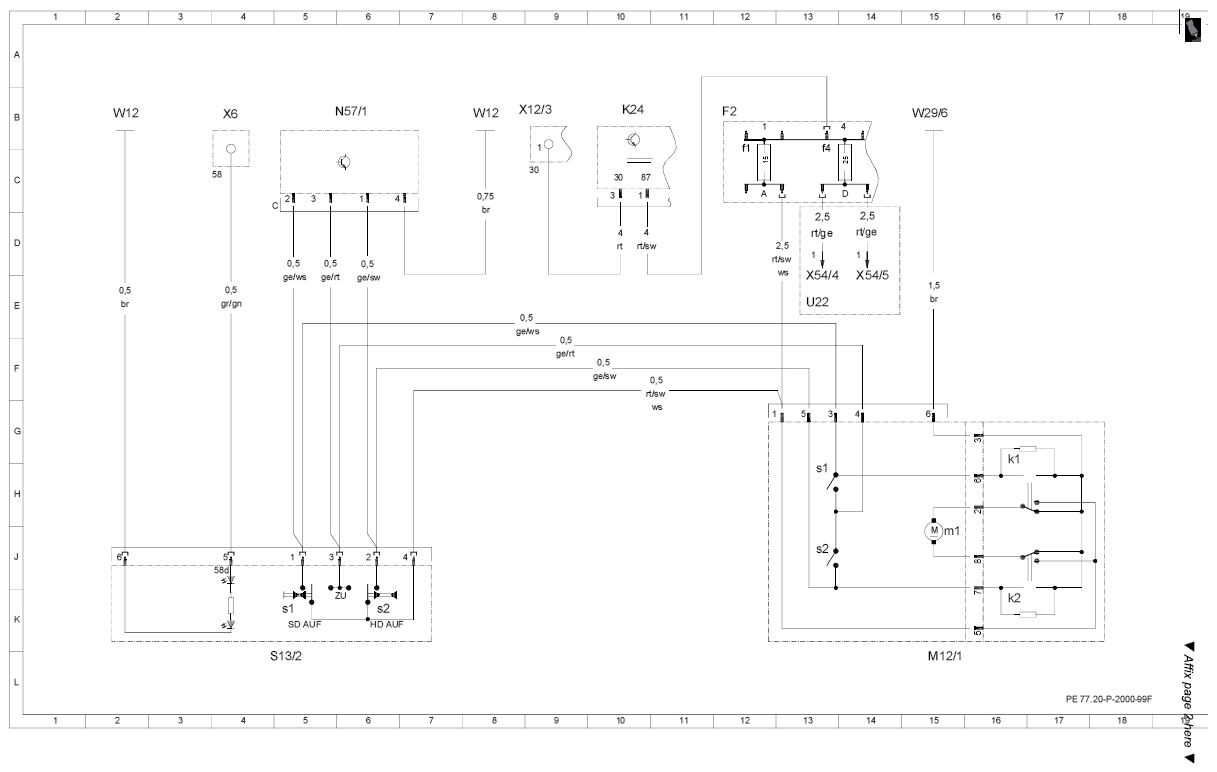

| S13/2 |
Tilting/sliding roof switch |
4 L |
| S13/2s1 |
Roof forward/back |
5 K |
| S13/2s2 |
Roof raise/lower |
6 K |
| U22 |
Valid for seat adjustment |
13 E |
| W12 |
Ground (center console) |
2 B |
| W12 |
Ground (center console) |
8 B |
| W29/6 |
Ground (right rear pillar) |
15 B |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
8 B |
| X54/4 |
Seat adjustment feed connector (4-pin) |
13 E |
| X54/5 |
Right front seat/seat belt extender connector |
14 E |
| X6 |
Circuit 58 terminal block (2-pin) |
4 B |
