Retrofit wiring harness. - AZ82.70-P-0001-04T

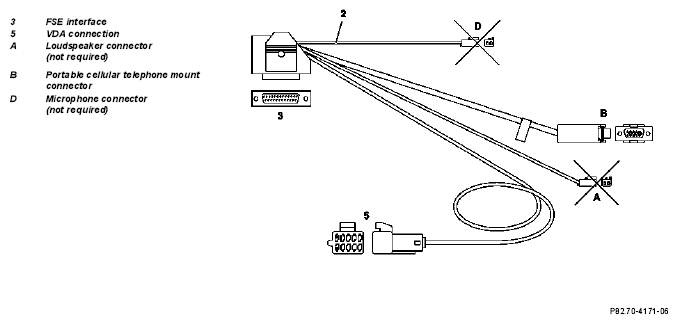

  1. Prepare portable cellular telephone wiring harness (2) as shown in figure
    Fig 1: Identifying Portable Cellular Telephone Wiring Harness
    G04986640
  2. Attach control module FSE (3) to CTEL wiring harness (2) and stick control module behind glove box using 2-sided adhesive tape as illustrated.
    Fig 2: Identifying Control Module FSE And CTEL Wiring Harness
    G04986641
  3. Uncover tied-back antenna line (ANT) and connection (VDA) to right A-pillar and route beneath glove box. Attach connector (VDA) to CTEL wiring harness.
    Fig 3: Identifying Tied-Back Antenna Line And Right A-Pillar Connection
    G04986642
  4. Attach CTEL (1) holder cable to wiring harness (2). Also attach CTEL (1) holder antenna cable.
  5. Route cable behind right air duct (arrow) and fix in place using adhesive felt.
    Fig 4: Attaching CTEL Holder Cable To Wiring Harness
    G04986643
  6. After installing telephone console (12) attach CTEL holder (1) and lead helix cable out along underside of telephone console (arrow).
    Fig 5: Attaching CTEL Holder And Lead Wires Out At Bottom Of Telephone Console
    G04986644
