| 1 |
Remove rear seat cushion |
|
AR91.12-P-1020TB |
| 2.1 |

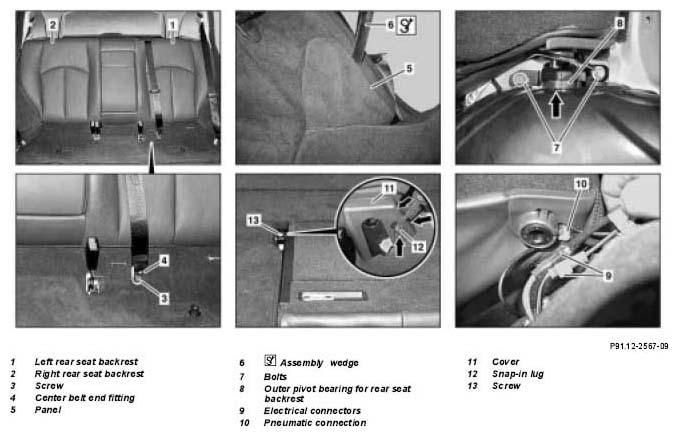

Undo screw (3) and remove center belt end fitting (4) |
Only where left rear seat backrest is removed (1). |
|
| |
|
 |
*BA91.40-P-1012-01A |
| 3 |
Release the right rear seat backrest (2) and the left rear seat backrest (1) and fold them forward |
See Operating Instructions |
|
| 4 |
Remove luggage compartment cover |
See Operating Instructions |
|
| 5 |
Using a mounting wedge (6), unclip paneling (5) and remove |
 |
Figure |
| 6 |
Unscrew bolts (7) |
|
*BA91.12-P-1010-02A |
| 7 |
Press the outer pivot bearing for rear seat backrest (8) out in the direction indicated by the arrow and remove it |
|
|
| 8 |
Unplug electrical connectors (9) and the pneumatic connection (10) |
|
|
| 9 |
Loosen the cover (11) at the engagement lugs (12) (arrows) and remove it from the center bearing bracket (16) |
|
|
| 10 |
Unscrew bolt (13). |
|
*BA91.12-P-1012-02A |
| 11 |

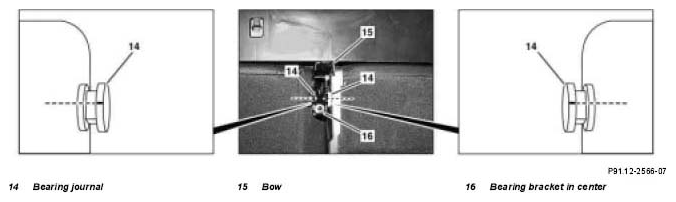

Fold up bracket (15) on center bearing bracket (16) and mark the installation position of the journals (14) relative to the center bearing bracket (16) |
|
|
| 12 |
Remove left rear seat backrest (1) or right rear seat backrest (2) |
Installation:
Using the markings made before removal, align the journals (14) relative to the center bearing bracket (16). |
|
| 13 |
Install in the reverse order |
|
|
| 14 |
Check the automatic fold-down function of the rear head restraints, and correct the installation position of the journals (14) if necessary. |
|
|
