Component description for the exhaust back pressure sensor - GF07.04-P-6130IC
ENGINE 648.960 with CODE (474) Particulate filter
ENGINE 648.961 with CODE (474) Particulate filter
Arrangement

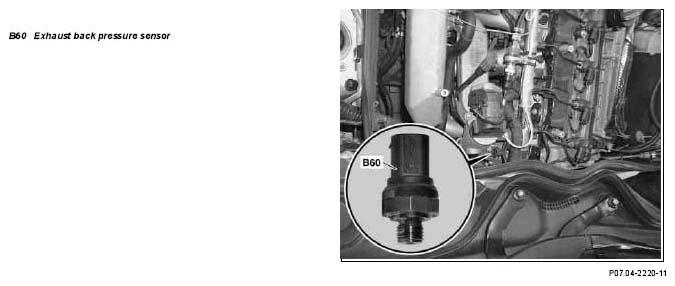

The exhaust back pressure sensor is located at the rear on the exhaust gas recirculation cooler below the left exhaust gas recirculation positioner (Y27/9).
Task
The exhaust back pressure sensor determines the exhaust back pressure upstream of the turbocharger. This information serves the CDI control unit (N3/9) to allows monitoring of the DPF fill level and the turbocharger and engine protection.
Function

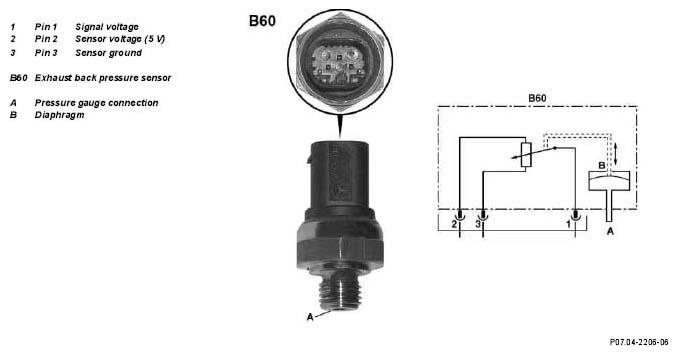

The exhaust back pressure deforms a membrane which operates on a potentiometer. This alters the resistance value of the potentiometer and influences the signal voltage, which is used as information regarding the exhaust gas back pressure for the CDI control unit.
